CONCEPT DOMAIN - Appraisal Pattern


DescriptionPattern Domain
The  Appraisal Pattern domain defines constructs used by stakeholders to assess and qualify Asset Blocks.
Dictionary  Dictionary of SysFEAT patterns
Parent Domain  Governance Pattern
Domain dependencies  Architecture Packages
  Teams Pattern

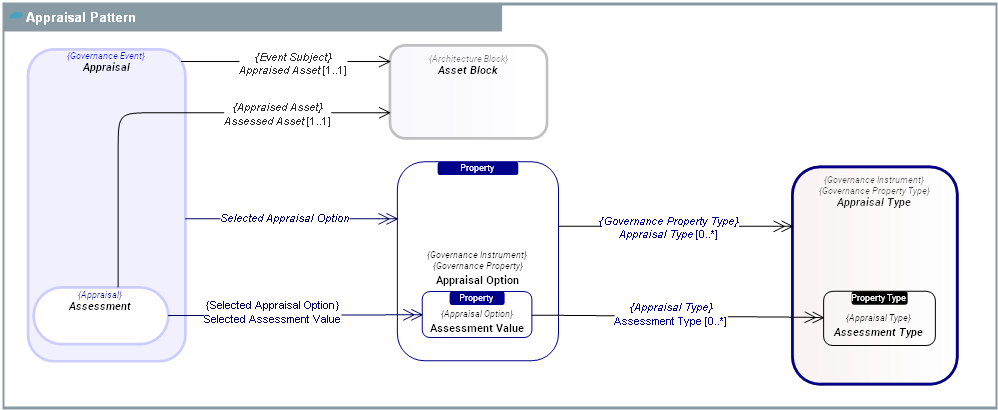

DOMAIN CONCEPT GRAPH


Diagram Graph
../images/83bb9d706192357b_83bb9d7e6192365a_i.png

CONCEPT DESCRIPTIONS


Concrete Concepts
ConceptDescription
  Appraisal Option
An Appraisal Option is a Property associated with an Appraisal Type representing a potential appraisal value that can be chosen during an appraisal process.
For instance, when making decisions about invesment on an enterprise asset, the possible options can be: eliminate, invest, migrate.
  Assessment Value An  Assessment Value is an Appraisal Option associated with an Assessment Type, representing a potential value that can be chosen during an assessment process.

Abstract Concepts
ConceptDescription
  Appraisal
An  Appraisal is a time bound statement expressed by stakeholders to qualify Asset Blocks with respect to their worth.
Assessments and Decisions are two major types of  Appraisals provided by  SysFEAT.
  Appraisal Type
An  Appraisal Type refers to a kind of Appraisal method and technique used to evaluate the worth, effectiveness, compliance, or quality of enterprise Asset Blocks.
Appraisal Types define a set of Appraisal Options which are the possible values that will result from an Appraisal activity.
For instance, when making decisions about invesment on an enterprise asset, the possible options can be: eliminate, invest, migrate.
Assessment Type and Resolution Type are the two appraisal techniques provided by  SysFEAT.
  Assessment
An  Assessment is the result of the act of judging or assessing an aspect of the enterprise, based on an enterprise description and on the comparison of this description with the actual state of the enterprise.
An  Assessment is made by one or several Stakeholder s.
  Assessment Type
An  Assessment Type refers to a kind of Assessment method and technique used to evaluate the worth, effectiveness, compliance, or quality of enterprise Asset Blocks.
 Assessment Types define a set of  Assessment Values which are the possible values that will result from an Assessment.
  Asset Block An  Asset Block is an Architecture Block used to describe the System Operating Framework - SOF of the enterprise and its systems.
