IDENTITY DIAGRAM DOMAINS

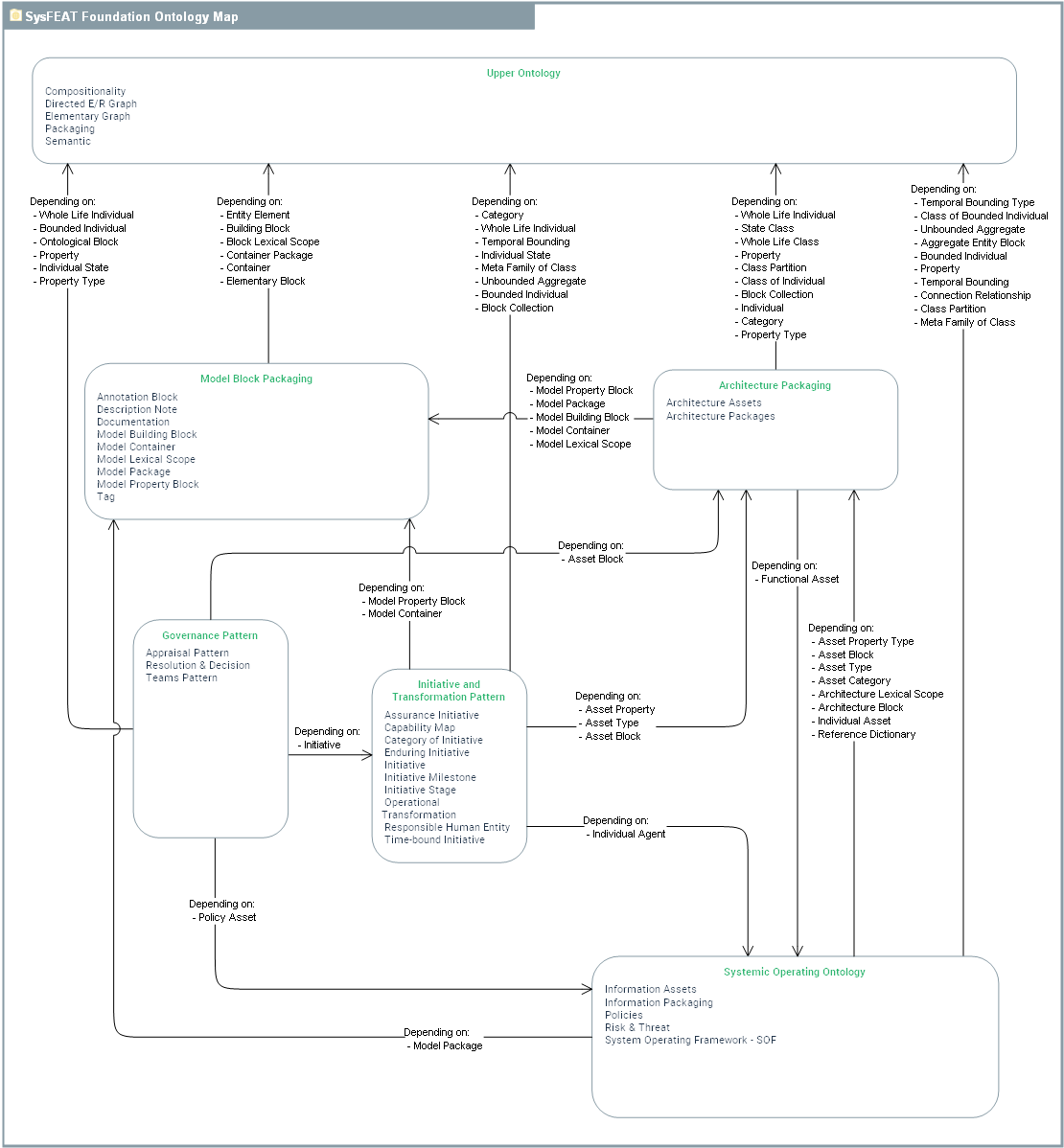

IDENTITY - SysFEAT Foundation Ontology Map


Description
Top level map of  SysFEAT patterns. It is layered in three levels::
1. The basic fondations of modeling constructs describing concepts, their relationships and their  classification: the Upper Ontology.
2. The shared characteristics of Asset Blocks: the Architecture Assets.
3. The structure and behaviors of systems in their environment: the Systemic Operating Ontology.
The map also includes two dimensions required to ensure enterprise management:
1. Transformation initiatives: the Initiative and Transformation Pattern.
2. Gouvernance activities and instruments: the Governance Pattern.
Dictionary  Dictionary of SysFEAT patterns

DIAGRAM


../images/e93aebc65fa205e8_i.png

DOMAINS


DomainDescription
  Architecture Packaging
  Governance Pattern The  Governance Pattern domain defines organizations and instrurments required to govern Enduring Initiatives.
  Initiative and Transformation Pattern
The  Initiative and Transformation Pattern domain defines management concepts required for transformation initiatives.
It provides principles for the coordination of large scale initiatives evolving over time (Enduring Initiative and their  Initiative Stages).
  Model Block Packaging
 Model Block Packaging family of concepts defines the different kind of Building Blocks used in system and enterprise modeling:
  Systemic Operating Ontology
The  Systemic Operating Ontology domain bundles sub-domains used to model how a system, including an enterprise, operates/functions in its environment.
It includes Agents, Action Processes, interactions , Behavioral Rules,  Capabilityies, Outcome Events, Information Assets and Directives.
  Upper Ontology
The  Upper Ontology domain encompasses six fundamental domains that establish the foundation for the modeling syntax and semantic.
1) Elementary Graph  defines basic constructs for relating and classifying elements in a directed graph.
2)  Directed E/R Graph defines the elementary constructs for entities and relationships.
3) Packaging defines syntactic constructs used to package reusable entities( Building Blocks) in modules called Containers.
4) Compositionality defines the syntactic constructs used to build  Entity Elements that have an internal structure and boundaries.
5) Packaging defines syntactic constructs used to organize models in modules called  Containers.
6) Semantic defines Bounded Individuals (entities that exists over space and time how they are composed and classified, enabling effective representation of meaning.
