Scenario of Application System Environment

CLASS OF CLASS OF INDIVIDUAL - Scenario of Application System Environment

Description

A Scenario of Application System Environment presents the flow exchanged between the IT services or the micro-services used by this application. A scenario can represent a specific use case of this application or, globally, the set of all flows exchanged inside this application.

Functional Domain: Application Functional Architecture

The Application Functional Architecture domain is used to describe the functional structure and behavior of Business Software Systems.

External references

OpenGroup - ArchiMate - Application Interaction

Super Types

Software System Environment Scenario

Dictionary

SysFEAT Enterprise concepts

Lexical Scope

Architecture Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Subject Application System	[1..1]	Application System	Scenario of Application System Environment
Participant Application System	[*..0]	Application System	Scenario of Application System Environment
Application Flow	[1..1]	Information Outcome Event	Software System Environment Scenario
Realized Conceptual Environment	[*..0]	Conceptual Environment	Business Resource Ecosystem
Policy Conformance	[*..0]	Policy	Functional Asset	A Policy Conformance is the conformity requirement that applies a Functional Asset.
Applicable Condition Type	[*..0]	Condition Property Type	Asset Type	Set of Condition Property Types that can be applied to an Asset Type.
Classified by Bounded Individual MetaClass	[1..1]	Bounded Individual MetaClass	Asset Type
Class of Holonymy	[*..0]	First Order Class	First Order Class	Class of Holonymy is the powertype of Holonymy Relation.
Class of Meronymy	[*..0]	First Order Class	First Order Class	Class of Meronymy is the powerType of Meronymy Relation.

LOGICAL FORMULATION

LOGIC-AGDA RDF

File: 7a0afca35dde94f5.agda

File: 7a0afca35dde94f5.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

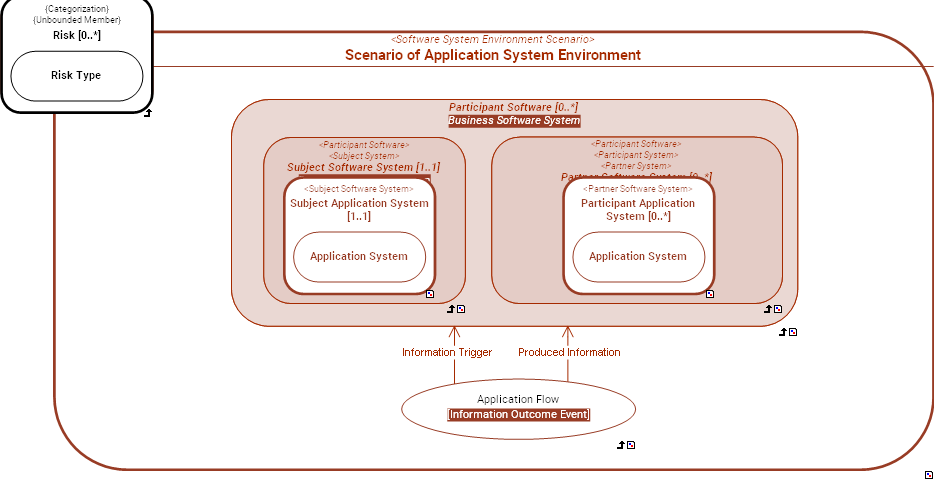

INTERNAL STRUCTURE
