BUILDING BLOCK - Application Deployment Environment
| Description | An Application Deployment Environment describes one possible integration context for an Application Deployment Architecture. It contains the subject application deployment architecture and the partner deployment architectures it must be integrated with, meaning it must communicates with via technical connections (with communication protocols, port numbers...). |
|---|---|
| External references |
 C4 Model - Level 1 - System Context Diagram |
| Super Types |
Software Deployment Environment |
| Functional Domain |
Application Deployment ArchitectureThe Application Deployment Architecture domain defines concepts used to organize Applications in Deployable Packages. |
| Dictionary |
Dictionary of SysFEAT concepts |
| Lexical Scope |
Architecture Container |
| Framework Mapping | C4 Model Mappings : Level 2- Container Diagram |
RELATIONSHIPS
Simple Graph Graph & Inheritance Table
Simple Graph
Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝
TEXTUAL SYNTAX
SEMANTIC TAXONOMY
Sub-Types Super-Types
Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

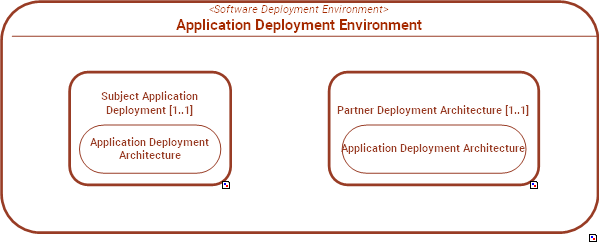

INTERNAL STRUCTURE
