BUILDING BLOCK - Operating Domain

Description	An Operating Domain is a Macro functional division of labor within an enterprise, acting as a Conceptual Agent. It embodies a collection of interrelated Business Functions which collaboratively provide one or more Business Capability(ies). Operating Domains serve as the highest hierarchical grouping of Business Functions within the enterprise's Conceptual Environment.
External references	Christensen Institute - Modularity, OMG - UAF - OperationalPerformer, Russell Ackoff - System of concepts - FunctionalDivisionOfLabor
Super Types	Conceptual Agent (from partition: Systemic Levels of Conceptual Agent)
Functional Domain	Conceptual Operating Model A Conceptual Operating Model serves as a strategic framework for the enterprise, directing its functional division of labor to fulfill its missions and purposes.
Dictionary	Dictionary of SysFEAT concepts
Conceptualization Levels	Conceptual
Systemic Levels	Macro
Lexical Scope	Architecture Container
Framework Mapping	SysFEAT Outcome Centric Model : Activity Domain

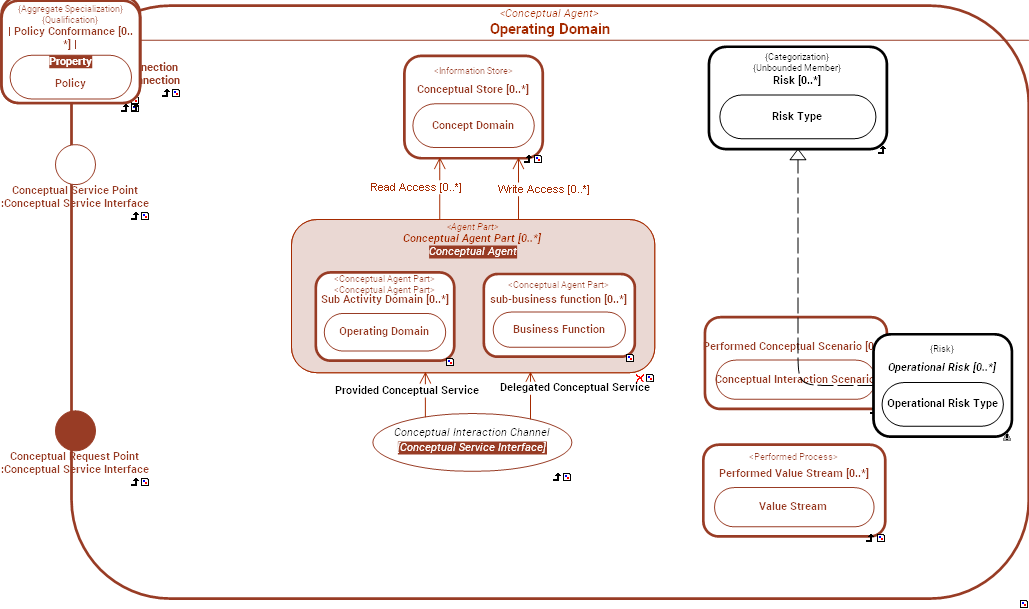

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Business Domain	[*..0]	Operating Domain	Operating Domain	Composition of a sub Business Function Architecture in a parent Business Function Architecture .
sub-business function	[*..0]	Business Function	Operating Domain	A sub-business function represents the role of a business function as part of a parent Operating Domain.
Sub Activity Domain	[*..0]	Operating Domain	Operating Domain	Usage of a Business Functional Area which is internal to the considered environment.
Specialized Conceptual Agent	[*..0]	Conceptual Agent	Conceptual Agent
Conceptual Service Point	[*..0]	Conceptual Service Interface	Conceptual Agent
Conceptual Request Point	[*..0]	Conceptual Service Interface	Conceptual Agent
Performed Conceptual Scenario	[*..0]	Conceptual Interaction Scenario	Conceptual Agent	Relationship between a Conceptual Agent and Conceptual Interaction Scenarios that it performs.
Performed Value Stream	[*..0]	Value Stream	Conceptual Agent	Relationship between a Conceptual Agent and Conceptual Behaviors that it performs.
Conceptual Store	[*..0]	Concept Domain	Conceptual Agent

TEXTUAL SYNTAX

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type
Conceptual Operating Connection	Operating Asset::Operating Entry	Conceptual Operating Connection
Conceptual Operating Connection	Operating Asset::Operating Exit	Conceptual Operating Connection
Conceptual Request Point		Conceptual Service Interface
Conceptual Service Point		Conceptual Service Interface
