CLASS OF CLASS OF CONNECTION - Operating Connection

Description

Abstract Concept
An Operating Connection is an Aggregate Connection that defines a behavioral connection between Operating Asset Types.

Structural Partition of Operating Connection: an Operating Connection is either a Behavioral Event or a Service Interface

Functional Domain: System Operating Framework - SOF

The System Operating Framework - SOF models how an active system (Agent Type) operates/functions (Behavior Type) in its Operating Eco-System to produce Outcome Events that benefit (value) to other Agent Types or affect (have an effect upon) these Agent Types.

Super Types

Ordering Connection

Dictionary

SysFEAT System Operating Framework

Lexical Scope

Block Lexical Scope

Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Source Connection End	[*..0]	Bounded Aggregate	Ordering Connection	Abstract Relationship
Connection End	[*..0]	Bounded Aggregate	Ordering Connection	Abstract Relationship
Target Connection End	[*..0]	Bounded Aggregate	Ordering Connection	Abstract Relationship
Connection Member	[*..0]	Ordering Connection	Ordering Connection
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relationship where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].
Enumerated Definition	[1..1]	Behavioral Event	Operating Connection
Enumerated Definition	[1..1]	Service Interface	Operating Connection

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 21c5276e655759fb.rdf

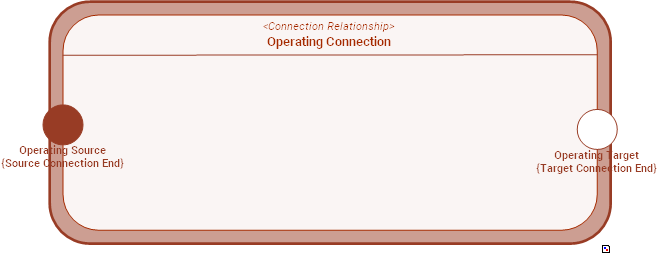

CONNECTION DIAGRAM
