CLASS OF CLASS OF INDIVIDUAL - Operating Asset Type

Description

Abstract Concept

An Operating Asset Type is a Functional Asset that describes the way Outcome Events are produced and consumed: how (Behavior Types) and by whom (Agent Types).

Operating Asset Types fulfill Capability(ies) (Fulfilled Capability).

As any Functional Architecture Asset, Operating Asset Types are subject to Policy Conformances. In addition, they define Rule Enforcements to indicate how Policy Conformances are met.

Conceptualization Levels of Operating Asset Type: an Operating Asset Type is either a Conceptual Operating Asset or a Resource Operating Asset
Systemic Levels of Operating Asset Type: an Operating Asset Type is either a Macro Operating Asset Type, a Mezzo Operating Asset Type or a Micro Operating Asset
Structural Partition of Operating Asset Type: an Operating Asset Type is either an Agent Type or a Behavior Type

Functional Domain: System Operating Framework - SOF

The System Operating Framework - SOF models how an active system (Agent Type) operates/functions (Behavior Type) in its Operating Eco-System to produce Outcome Events that benefit (value) to other Agent Types or affect (have an effect upon) these Agent Types.

External references

OMG - KerML - Class

Super Types

Asset Block

Functional Asset (from partition: Structural Partition of Functional Asset)

Dictionary

SysFEAT System Operating Framework

Lexical Scope

Architecture Container

Framework Mapping

UAF - Motivation : Operating Asset Type

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Operating Asset	[*..0]	Operating Asset Type	Operating Asset Type	Abstract Relationship
Realized Operating Asset	[*..0]	Operating Asset Type	Operating Asset Type	Abstract Relationship
Fulfilled Capability	[*..0]	Capability	Operating Asset Type	Abstract Relationship Capability(ies) fulfilled by an Agent Type and its Behavior Types.
Operating Entry	[*..0]	Operating Connection	Operating Asset Type	Abstract Relationship
Operating Exit	[*..0]	Operating Connection	Operating Asset Type	Abstract Relationship
Rule Enforcement	[*..0]	Behavioral Rule	Operating Asset Type	Abstract Relationship A Rule Enforcementt is the application of a Behavioral Rule in an Operating Asset Type.In a Action Process Type, a Rule Enforcement is a guide to Process Steps.In an Agent Type, a Rule Enforcement is a guide to its structure: Agent Parts, Information Stores, Performed Processes.
Operating Asset Part	[*..0]	Operating Asset Type	Operating Asset Type	Abstract Relationship
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relationship where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].
Enumerated Definition	[1..1]	Agent Type	Operating Asset Type
Enumerated Definition	[1..1]	Behavior Type	Operating Asset Type

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: a371a43b5b865817.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Operating Exit	Bounded Aggregate::Exit Border	Operating Connection

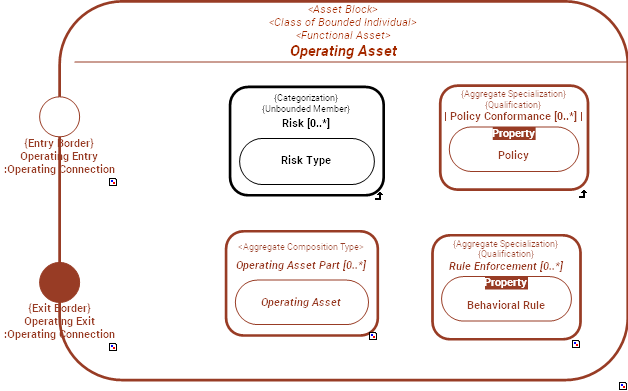

INTERNAL STRUCTURE

../images/a371a43b5b865817_ea27ebc35ec86511_i.png
