BUILDING BLOCK - Individual State

Description	Abstract Concept An Individual State is a temporal slice of a Bounded Individual. Examples: . The state of the Eiffel tower during the 1900 World Fair, with its improved elevators and electric illuminations (Apr 14, 1900 - Nov 12, 1900). . William Shakespeare in its early theatrical career (1592-1600). . Confucius in its early childhood. . The first Plinian phase of the Mount Vesuvius eruption (18 to 20 hour, Aug. 24 A.D. 79), that projected a column of volcanic debris and hot gases. . Oackland digital hospital after its renovation (2022 - ...).
External references	OMG KerML - TimeSliceOf
Super Types	Bounded Individual (from partition: Structural Partition of Bounded Individual)
Power Type	State Class
Functional Domain	Semantic The purpose of the Semantic pattern is to provide meaning through the definition of Ontological Blocks, described by their Typology Relationship (Classification and Specialization), and their Temporal Sequencing.
Dictionary	Dictionary of SysFEAT patterns

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
PowerTyped by State Class	[*..0]	State Class	Individual State
Property of Individual	[*..0]	Property	Bounded Individual	A Classification from a Bounded Individual to a Property that asserts the Bounded Individual has the Property.
End	[*..0]	Temporal Bounding	Bounded Individual	An End is the temporal Exit Border of a Bounded Individual that denotes the end of the Bounded Individual.
Start	[*..0]	Temporal Bounding	Bounded Individual	A Start is the temporal Entry Border of a Bounded Individual that denotes the beginning of the Bounded Individual.
Aggregate Composition	[*..0]	Bounded Individual	Bounded Individual	Aggregate Composition is a reified Composition (Whole/Part) where the composed Individual becomes a Composite Member of the whole Bounded Individual.
Temporal Sequencing	[*..0]	Temporal Bounding	Bounded Individual
Dependency Relationship	[1..1]	Entity Element	Entity Element	A Dependency Relationship is a Relationship Element that specifies the existential dependency of the sourceRelationship Element on its target Relationship Element.The cardinality to the target Entity Element is [1..1].
Non-Dependency Relationship	[*..0]	Entity Element	Entity Element	A Non-Dependency Relationship is a Relationship Element that specifies that the existence the source Entity Element doesnt depend on the existence of its target Entity Element.The cardinality to the target Entity Element is [0..*].
Bounded Member	[*..0]	Bounded Aggregate	Aggregate Entity Block	A Bounded Member is an Entity Member that aggregates a Bounded Aggregate.Bounded Members can be related by means of Connectors which connect an Exit Border of a source Bounded Member to a corresponding Entry Border of a target Bounded Member.
Unbounded Member	[*..0]	Unbounded Aggregate	Aggregate Entity Block	An Unbounded Member is an Entity Member of an Aggregate Entity Block that aggregates an Unbounded Aggregate.Because Entity Members do not have borders, Unbounded Members cannot be related by Connection Relationships (see Bounded Aggregate).
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

TEXTUAL SYNTAX

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

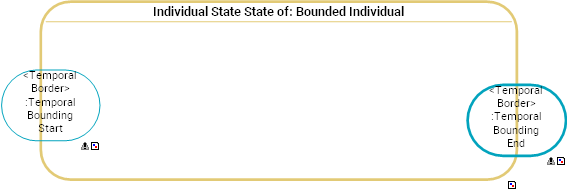

INTERNAL STRUCTURE

../images/29cd2db0661546c4_7ecd8666668f63de_i.png
