CLASS OF CLASS OF INDIVIDUAL - IT Infrastructure

Description

An IT Infrastructure is a configuration of Computing Systems and of Computer Networks that enable the operation the Business Systems of an enterprise.

Functional Domain: Facility Asset Architecture

External references

UCF Glossary - IT Infrastructure

Super Types

Configured Technology System

IT Infrastructure System

Dictionary

Dictionary of SysFEAT concepts

Systemic Levels

Macro

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Network Part	[*..0]	Computer Network	IT Infrastructure
Realized Agent	[*..0]	Agent Type	Agent Type
Life Start	[*..0]	Agent Life Cycle Event	Agent Type	A Life Start is a Start Type that denotes the type of event that signifies the beginning of an Agent Types existence.
Life End	[*..0]	Agent Life Cycle Event	Agent Type	A Life End is an End Type that denotes the type of event that signifies the end of an Agent Types existence.
Specialized Technology Asset	[*..0]	Technology Functional Asset	Technology Functional Asset
Technology Risk	[*..0]	Technology Risk Type	Technology Functional Asset
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: bcebd86d549143b4.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
Client Network Port	Technology System::Technology Request Point	Network Interface	Communication Ports are physical communication points to resource. They comply with particular physical communication protocols. They handle service points and request points.
Network Server Port	Technology System::Technology Service Point	Network Interface	Network Ports are physical communication end points to Networking Systems. They comply with particular physical communication protocols. They handle service points and request points.

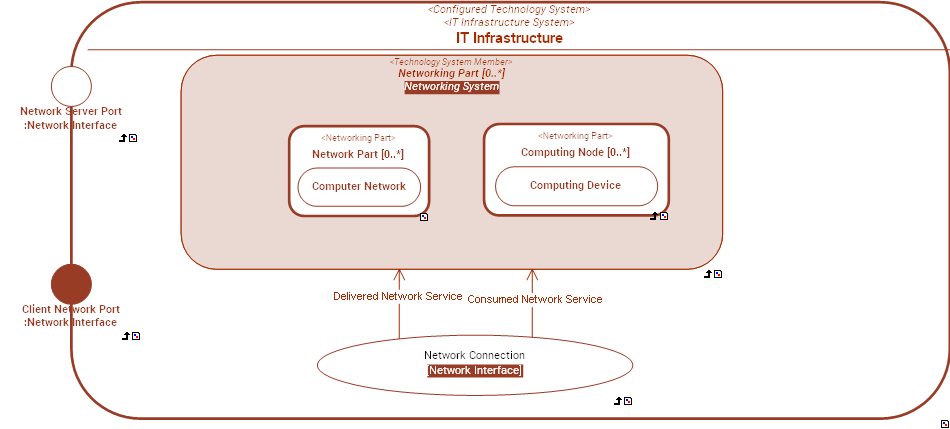

INTERNAL STRUCTURE

../images/bcebd86d549143b4_f4be120e5ee1e23a_i.png
