CLASS OF CLASS OF INDIVIDUAL - Resource Agent Type

Description

Abstract Concept

A Resource Agent Type is an entity type which instance belongs to the physical space, and comprises Human Agent Categorys, Hardware System Categorys, Software System Categorys and Natural Resource Categorys.

Resource Agent Type is the supertype of all types of Agent Types that produce and react to Resource Outcome Events.

This includes:

1) Business Agent Types which represent physical resources that produce and react to Business Outcome Events of the enterprise.

2) Technology Systems which represents enabling systems that produce and react to Technology Outcome Events.

Resource Agent Nature of Resource Agent Type: a Resource Agent Type is either a Natural Resource Category, a Human Agent Category, an Artifact or a Resource Agent Configuration
Operational Role of Resource Agent Type: a Resource Agent Type is either a Technology System or a Business Agent Type
Tangible-Intangible Partition of Resource Agent Type: a Resource Agent Type is either an Intangible Resource Agent or a Physical Resource Agent

Functional Domain: SOF - Resource System Operating Pattern (R-SOF)

The SOF - Resource System Operating Pattern (R-SOF) domain is a conceptualization level that comprises abstract entities that belong to the physical space and comprise Human resources, Software resources, Hardware resources and natural resources.

Super Types

Agent Type (from partition: Conceptualization Levels of Agent Type)

Resource Operating Asset (from partition: Structural Partition of Resource Operating Asset)

Power Type of

Individual Resource Agent

Dictionary

Dictionary of SysFEAT concepts

Conceptualization Levels

Resource

Lexical Scope

Architecture Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Business Operating Agent	[*..0]	Resource Agent Type	Resource Agent Type	Abstract Relationship
Provided Resource Interface	[*..0]	Resource Service Interface	Resource Agent Type
Consumed Resource Interface	[*..0]	Resource Service Interface	Resource Agent Type
Resource Connection	[*..0]	Resource Service Interface	Resource Agent Type	Abstract Relationship
Resource Agent Part	[*..0]	Resource Agent Type	Resource Agent Type	Abstract Relationship
Performed Resource Scenario	[*..0]	Resource Interaction Process	Resource Agent Type	Abstract Relationship A Performed Resource Scenario is a Resource Interaction Process operated by a Resource Agent Type.
Performed Resource Process	[*..0]	Resource Action Process	Resource Agent Type	Abstract Relationship A Performed Resource Process is a Resource Action Process operated by a Resource Agent Type.
Resource Store	[*..0]	Information Domain	Resource Agent Type	Abstract Relationship
Realized Business Operating Asset	[*..0]	Resource Operating Asset	Resource Operating Asset	Abstract Relationship
Fulfilled Resource Capability	[*..0]	Resource Capability	Resource Operating Asset	Abstract Relationship Resource Capability(ies) fulfilled by a Resource Operating Asset.
Resource Rule Enforcement	[*..0]	Resource Rule	Resource Operating Asset	Abstract Relationship
Realized Agent	[*..0]	Agent Type	Agent Type
Life Start	[*..0]	Agent Life Cycle Event	Agent Type	A Life Start is a Start Type that denotes the type of event that signifies the beginning of an Agent Types existence.
Life End	[*..0]	Agent Life Cycle Event	Agent Type	A Life End is an End Type that denotes the type of event that signifies the end of an Agent Types existence.
Referencing Relationship	[*..0]	Entity	Entity	Abstract Relationship A Referencing Relationship is a Relationship that points at its target Entity through Reference Adjacency.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relationship where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].
Existential Independence	[*..0]	Entity	Entity	Abstract Relationship An Existential Independence relationship is a Relationship that specifies that the existence the source Entity doesnt depend on the existence of its target Entity.The cardinality of set set of targetted Entity is [0..*].
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: e2ef091962147ad7.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
Consumed Resource Interface	Agent Type::Request Point	Resource Service Interface
Provided Resource Interface	Agent Type::Service Point	Resource Service Interface

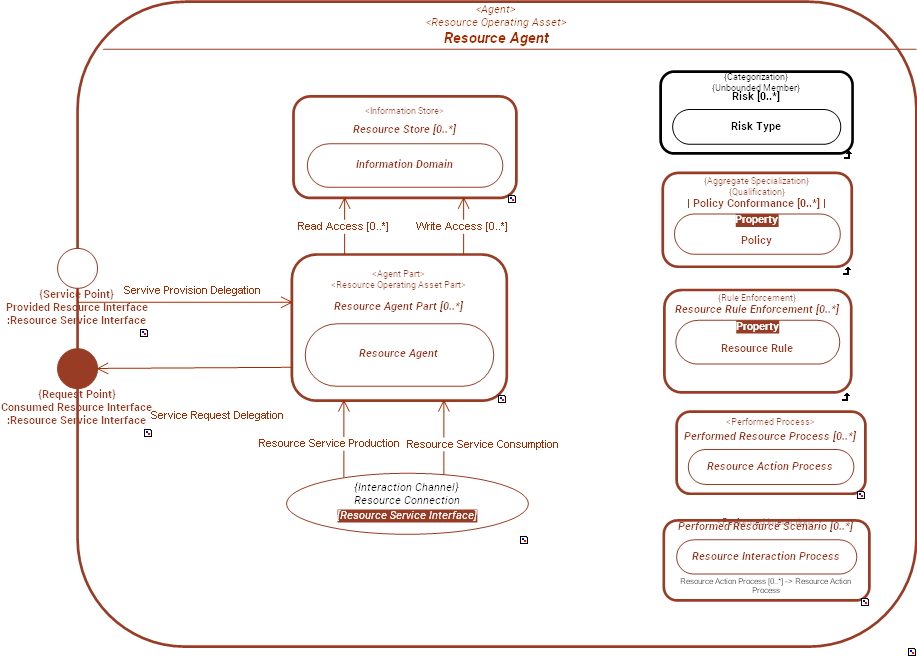

INTERNAL STRUCTURE

../images/e2ef091962147ad7_e2ef09c862147e1c_i.png

CONNECTORS

Connector	Source	Target	Connector Type	Description
Resource Connection	Resource Agent Part. Consumed Resource Interface	Resource Agent Part. Provided Resource Interface	Resource Service Interface	Abstract Connection
