Software Module

CLASS OF CLASS OF INDIVIDUAL - Software Module

Description

Abstract Concept

A Software Module is a Business Software System that is part of an application system.

A Software Module is either an Application, Application Component or a MicroService.

All share the ability to be composed of sub-Application Components and have dependencies to enabling Software Technology(ies).

Systemic Levels of Software Module: a Software Module is either an Application, a MicroService or an Application Component

Functional Domain: Application Functional Architecture

The Application Functional Architecture domain is used to describe the functional structure and behavior of Business Software Systems.

External references

OMG - UAF - Software

OpenGroup - TOGAF - Definition - Application Software

Super Types

Business Software System (from partition: Systemic Levels of Business Software System)

Dictionary

SysFEAT Enterprise concepts

Lexical Scope

Architecture Container

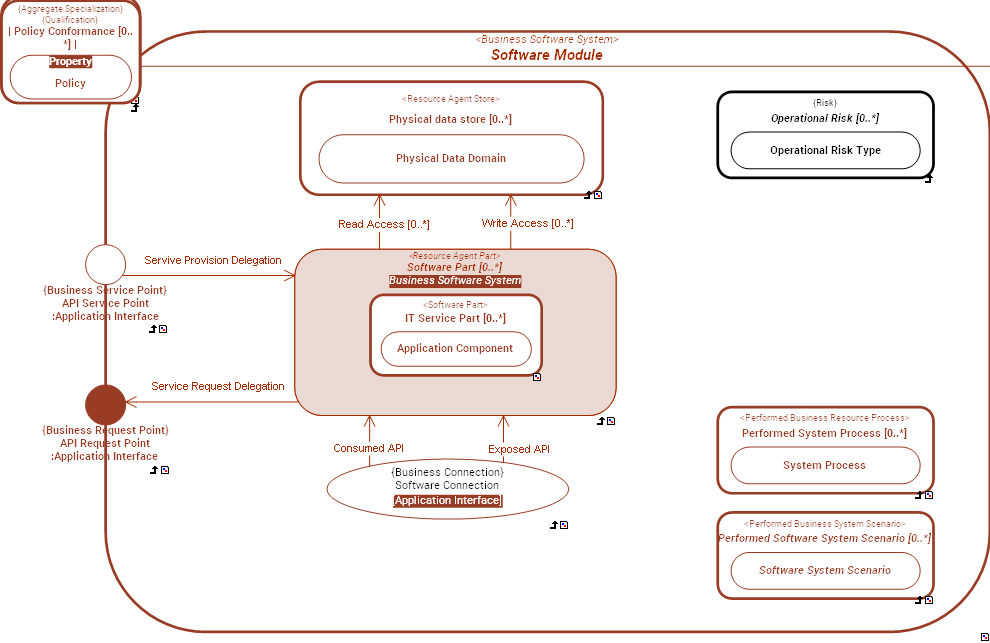

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Required software technology	[*..0]	Software Technology	Software Module	Set of Software Technology(ies) on which a Software Module is based.
Component Part	[*..0]	Application Component	Software Module	Embbeding of an Application Component in an Application or in another Application Component.
Specialized Software System	[*..0]	Business Software System	Business Software System	Abstract Relationship
Realized Logical System	[*..0]	Logical Software System	Business Software System
API Request Point	[1..1]	Application Interface	Business Software System	Abstract Relationship
API Service Point	[1..1]	Application Interface	Business Software System	Abstract Relationship
Software Connection	[*..0]	Application Interface	Business Software System	Abstract Relationship An Interaction represents a contract between entities in a specific context inside or outside a company. These entities can be organizational units, activities, or processes.The content of this contract is described in a protocol.
Physical data store	[*..0]	Physical Data Domain	Business Software System	Abstract Relationship
Performed Software System Scenario	[*..0]	Software System Scenario	Business Software System	Abstract Relationship
Performed System Process	[*..0]	System Process	Business System	An application process performance establishes the relationship between an application and the some dynamic behaviors described as BPMN processes.
Realized Business Function	[*..0]	Conceptual Agent	Business Agent Type
Fulfilled Functionality	[*..0]	Functionality	Business System Asset
Fulfilled Requirement	[*..0]	Requirement	Business System Asset
System Rule Enforcement	[*..0]	System Rule	Business System Asset
Fulfilled Business Capability	[*..0]	Business Capability	Business Operating Asset
Process Family	[*..0]	Process Family	Business Operating Asset	Classification of Business Operating Asset a by a Process Family.
Consumed Resource Interface	[*..0]	Resource Service Interface	Resource Agent Type
Provided Resource Interface	[*..0]	Resource Service Interface	Resource Agent Type
Resource Rule Enforcement	[*..0]	Resource Rule	Resource Operating Asset Type	Abstract Relationship
Operational Risk	[*..0]	Operational Risk Type	Business Functional Asset	An Operational Risk is a kind of Risk that refers to the potential for loss resulting from inadequate structure or behavior of a Business Operating Asset.
Realized Agent	[*..0]	Agent Type	Agent Type
Life End	[*..0]	Agent Life Cycle Event	Agent Type	A Life End is an End Type that denotes the type of event that signifies the end of an Agent Types existence.
Life Start	[*..0]	Agent Life Cycle Event	Agent Type	A Life Start is a Start Type that denotes the type of event that signifies the beginning of an Agent Types existence.
Conceptual Schematization	[1..1]	Systemic Level Family	Operating Asset
Conceptual Schematization	[1..1]	Conceptualization Level	Operating Asset
Operating Asset Category	[*..0]	Operating Asset Category	Operating Asset
Operating Asset Categorization	[*..0]	Operating Asset Categorization	Operating Asset
Policy Conformance	[*..0]	Policy	Functional Asset	A Policy Conformance is the conformity requirement that applies a Functional Asset.
Applicable Condition Type	[*..0]	Condition Property Type	Asset Type	Set of Condition Property Types that can be applied to an Asset Type.
Classified by Bounded Individual MetaClass	[1..1]	Bounded Individual MetaClass	Asset Type
Asset Categorization	[*..0]	Asset Category	Asset Type	Abstract Relationship
Relation	[*..0]	Entity	Entity	Abstract Relationship A Relation is the reification of a Linkage of the Predication Substrate, as an Element that represents a directed connection between a source Entity and a target Entity.Relations are nested within their source Entity. (principle of locality).
Reference Relation	[*..0]	Entity	Entity	Abstract Relationship A Reference Relation is a Relation that points at a target Entity which is not in the Lexical Scope of its source Entity.
Existential Independence	[*..0]	Entity	Entity	Abstract Relationship An Existential Independence relation is a Relation that specifies that the existence of the source Entity doesnt depend on the existence of its target Entity.The cardinality of set of targetted Entity is [0..*].
instance of Entity	[*..0]	Class of Entity	Entity	Abstract Relationship instance of Entity is a Typology relationship that relates an Entity to a Class of Entity, as instance of this Class of Entity.
Temporal Ordering Type	[*..0]	Temporal Bounding Type	Class of Bounded Individual	Abstract Relationship
Class of Holonymy	[*..0]	First Order Class	First Order Class	Class of Holonymy is the powertype of Holonymy Relation.
Class of Meronymy	[*..0]	First Order Class	First Order Class	Class of Meronymy is the powerType of Meronymy Relation.

LOGICAL FORMULATION

LOGIC-AGDA RDF

File: c30bdac25a5d9eaf.agda

File: c30bdac25a5d9eaf.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type
API Request Point	Business Agent Type::Business Request Point	Application Interface
API Service Point	Business Agent Type::Business Service Point	Application Interface
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Operating Exit	Bounded Aggregate::Exit Border	Operating Connection
Operating Exit	Bounded Aggregate::Exit Border	Operating Connection
