CONNECTION - Individual Event

Description	Abstract Concept An Individual Event is a Temporal Bounding that establishes a temporal connection between Individual Behaviors. An Individual Event connects a Previous Behavioral Event, to a Next Behavioral Event.
External references	ISO 15926 - Event, OpenGroup - ArchiMate - Event
Super Types	Temporal Bounding
Dictionary	Dictionary of SysFEAT patterns
Functional Domain	System Operating Framework - SOF The System Operating Framework - SOF models how an active system (Agent) operates/functions (Behavior) in its Operating Eco-System to produce Outcome Events that benefit (value) to other Agents or affect (have an effect upon) these Agents.
Categories	Life Cycle

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Previous	[*..0]	Individual Behavior	Individual Event
Next	[*..0]	Individual Behavior	Individual Event
Composition (Whole/Part)	[*..0]	Individual	Individual	Composition (Whole/Part) is a Semantic Relationship between Individuals, where the source Individual (the whole) incorporates the target Individual as one of its parts.Composition (Whole/Part) is a Semantic Relationship where the source Individual (the whole) incorporates the target Individual as one of its parts.
Composed Connection	[*..0]	Connection Relationship	Connection Relationship
Referencing Relationship	[*..0]	Entity Element	Entity Element	A Referencing Relationship is a Relationship Element that points at its target Entity Element through Reference Adjacency.
Dependency Relationship	[1..1]	Entity Element	Entity Element	A Dependency Relationship is a Relationship Element that specifies the existential dependency of the sourceRelationship Element on its target Relationship Element.The cardinality to the target Entity Element is [1..1].
Non-Dependency Relationship	[*..0]	Entity Element	Entity Element	A Non-Dependency Relationship is a Relationship Element that specifies that the existence the source Entity Element doesnt depend on the existence of its target Entity Element.The cardinality to the target Entity Element is [0..*].
Classification	[*..0]	Ordered Semantic Class	Ontological Block	Classification is the top level Typology Relationship that relates an Ontological Block to an Ordered Semantic Class, as instance of this Ordered Semantic Class.
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

TEXTUAL SYNTAX

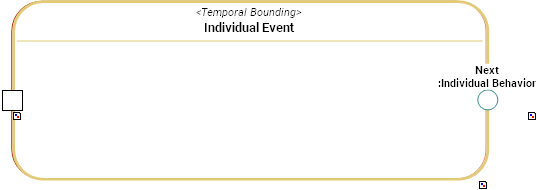

CONNECTION DIAGRAM

../images/e9af133166e86be3_e13c914767901a08_i.png

CONNECTION ENDS

	Name	Type	Super Type	Description
Source End	Previous	Individual Behavior	Temporal Bounding::Start
Target End	Next	Individual Behavior	Temporal Bounding::End
