CLASS OF CLASS OF INDIVIDUAL - Logical Application

Description

A Logical Application is an encapsulation of application functionality that is independent of a particular implementation. For example, the classification of all purchase request processing applications implemented in an enterprise.

Functional Domain: Logical Application Architecture

The Logical Application Architecture domain provides means of describing the logical structure and behavior of Business Software Systems of the enterprise.

External references

OpenGroup - TOGAF - Logical Application Component

Super Types

Logical Software System

Dictionary

Dictionary of SysFEAT concepts

Systemic Levels

Mezzo

Lexical Scope

Architecture Container

Framework Mapping

TOGAF - Enterprise Metamodel Mapping : Logical Application Component

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Logical Service Point	[1..1]	Application Interface	Logical Software System
Logical Request Point	[1..1]	Application Interface	Logical Software System
Logical Software Channel	[*..0]	Application Interface	Logical Software System
Logical Data Store	[*..0]	Logical Data Domain	Logical Software System
Logical Software Member	[*..0]	Logical Software System	Logical Software System
Realized Logical System	[*..0]	Logical Software System	Business Software System
Realized Agent	[*..0]	Agent Type	Agent Type
Life Start	[*..0]	Agent Life Cycle Event	Agent Type	A Life Start is a Start Type that denotes the type of event that signifies the beginning of an Agent Types existence.
Life End	[*..0]	Agent Life Cycle Event	Agent Type	A Life End is an End Type that denotes the type of event that signifies the end of an Agent Types existence.
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 255833f95c6d1db3.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
Logical Request Point	Business Software System::API Request Point	Application Interface
Logical Service Point	Business Software System::API Service Point	Application Interface

INTERNAL STRUCTURE

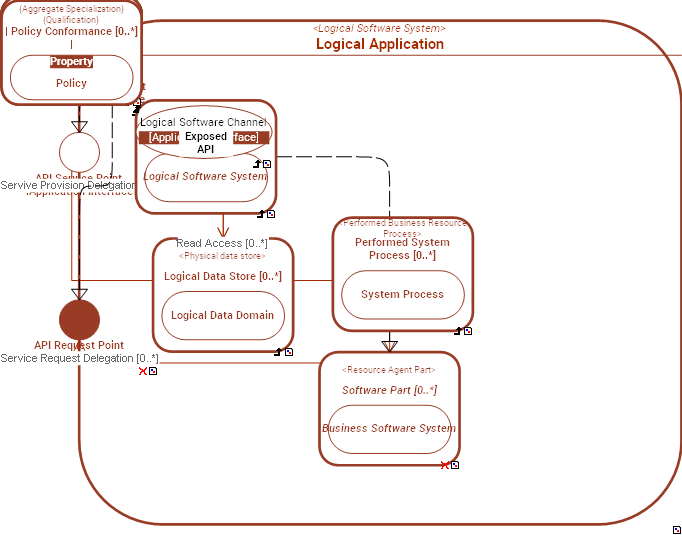

../images/255833f95c6d1db3_2b58c9ea5eecfade_i.png
