BUILDING BLOCK - System Process

Description	A System Process is a Action Process that occurs inside Business Systems (software systems or hardware systems). Its performers can only be Business Software Systems or Concrete Hardware Systems. During its course of action, a System Process consumes or produces Data Assets: 1) It may memorize or access Data Assets in its Process Store. 2) It may receive Data Assets at its boundary: Consumed Outcome. 3) It may signal the production of Data Assets at its boundary: Delivered Outcome. The course of actions of a System Process is constrained by the application of rules ( System Rule Enforcement) that define what is allowed and not allowed to do.
External references	OMG - BPMN - Process, OMG - UAF - Function, OpenGroup - ArchiMate - Application-Process
Super Types	Business System Asset Business Resource Process (from partition: Resource Agent Nature of Business Resource Process)
Functional Domain	EA Pattern - Business System Operating Model The EA Pattern - Business System Operating Model domain defines concepts and relationships used to model how a Business System operates/functions in its Operating Eco-System..
Dictionary	Dictionary of SysFEAT concepts
Systemic Levels	Mezzo
Lexical Scope	Architecture Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Sytem Process	[*..0]	System Process	System Process
System Sequence	[*..0]	Behavioral Event	System Process
System Flow	[*..0]	Information Outcome Event	System Process
System Process Participant	[*..0]	Business System	System Process	A participant defines a partition of the actions of a process that will be assigned to a same agent.A participant can be decomposed into sub-partition to delegate responsibility for a subset of its actions.
System Process Step	[*..0]	System Process	System Process	Elementary step that is included within a system process. A task is used when the work in the system process is not broken down to a finer level of the process. Generally, an end-user and/or an IT service are used to perform the task when it is executed.
Data Store	[*..0]	Physical Data Domain	System Process

TEXTUAL SYNTAX

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
Business Input	Resource Behavior::Resource Input	Resource Outcome Event	A Business Input is a border of a Resource Behavior that refers to the consumption of an Business Outcome Event that starts the Resource Behavior.
Business Output	Resource Behavior::Resource Output	Business Outcome Event	A Business Output is a border of a Resource Behavior that refers to the production of a Business Outcome Event that ends the Resource Behavior.
Information Trigger	Business Behavior::Business Start Business Behavior::Business End
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Operating Exit	Bounded Aggregate::Exit Border	Operating Connection
Produced Information

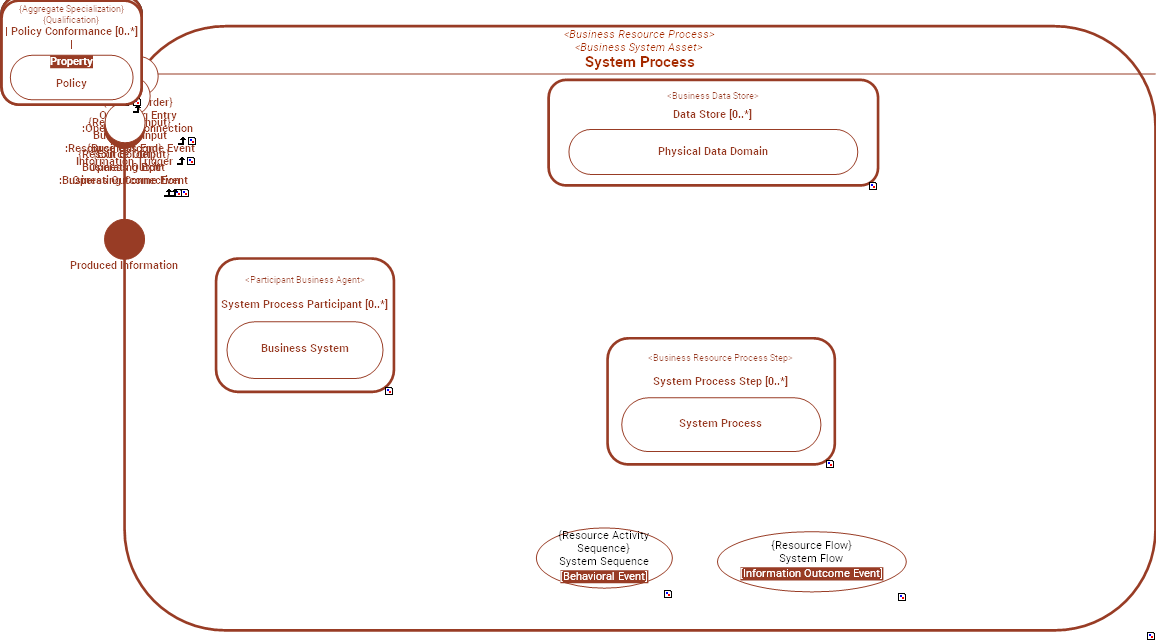

INTERNAL STRUCTURE

../images/46194939560d374f_0c9b0cd95ebd812a_i.png

CONNECTORS

Connector	Source	Target	Connector Type	Description
System Flow	System Process Step	System Process Step	Information Outcome Event
System Sequence	System Process Step. End Event	System Process Step. Start Event	Behavioral Event
