BUILDING BLOCK - Individual Process

Description	Abstract Concept Individual Process is the root instance of Action Process. Conceptualization Levels of Individual Process: an Individual Process is either an Individual Resource Process
External references	OpenGroup - ArchiMate - Process
Super Types	Individual Behavior
Power Type	Action Process
Functional Domain	System Operating Framework - SOF The System Operating Framework - SOF models how an active system (Agent) operates/functions (Behavior) in its Operating Eco-System to produce Outcome Events that benefit (value) to other Agents or affect (have an effect upon) these Agents.
Dictionary	Dictionary of SysFEAT patterns

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

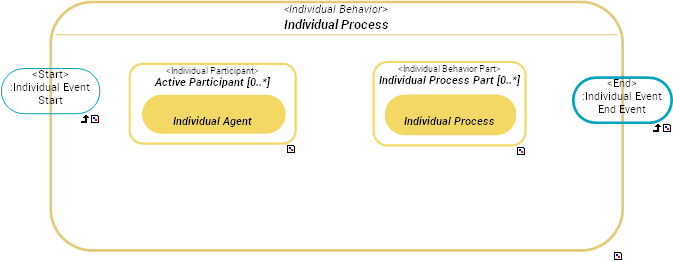

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Individual Process Part	[*..0]	Individual Process	Individual Process
Active Participant	[*..0]	Individual Agent	Individual Process	An Active Participant is the Aggregate Composition of an Individual Agent that indicates that the aggregated Individual Agent is an active participant of the Individual Process.
Dependency Relationship	[1..1]	Entity Element	Entity Element	A Dependency Relationship is a Relationship Element that specifies the existential dependency of the sourceRelationship Element on its target Relationship Element.The cardinality to the target Entity Element is [1..1].
Non-Dependency Relationship	[*..0]	Entity Element	Entity Element	A Non-Dependency Relationship is a Relationship Element that specifies that the existence the source Entity Element doesnt depend on the existence of its target Entity Element.The cardinality to the target Entity Element is [0..*].
Bounded Member	[*..0]	Bounded Aggregate	Aggregate Entity Block	A Bounded Member is an Entity Member that aggregates a Bounded Aggregate.Bounded Members can be related by means of Connectors which connect an Exit Border of a source Bounded Member to a corresponding Entry Border of a target Bounded Member.
Unbounded Member	[*..0]	Unbounded Aggregate	Aggregate Entity Block	An Unbounded Member is an Entity Member of an Aggregate Entity Block that aggregates an Unbounded Aggregate.Because Entity Members do not have borders, Unbounded Members cannot be related by Connection Relationships (see Bounded Aggregate).
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

TEXTUAL SYNTAX

SEMANTIC TAXONOMY

Sub-Types Super-Types

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.
