CLASS OF CLASS OF INDIVIDUAL - Behavior Type

Description

Abstract Concept

A Behavior Type is an Operating Asset Type that describes any action or reaction of an Agent Type to external or internal Behavioral Events. Behavior Types include Action Process Typees (action), Interaction Process Types (stories) or interactions (Service Interface).

The course of actions of a Behavior Type is constrained ( Rule Enforcement) by the application of Behavioral Rules that define what is allowed and not allowed to do.

Conceptualization Levels of Behavior Type: a Behavior Type is either a Conceptual Behavior or a Resource Behavior
Structural Partition of Behavior Type: a Behavior Type is either a Service Interface, an Interaction Process Type or an Action Process Type

Functional Domain: System Operating Framework - SOF

The System Operating Framework - SOF models how an active system (Agent Type) operates/functions (Behavior Type) in its Operating Eco-System to produce Outcome Events that benefit (value) to other Agent Types or affect (have an effect upon) these Agent Types.

External references

ISO 15926 - ClassOfActivity

OMG - KerML - Behavior

OMG - UML - Behavior

OpenGroup - ArchiMate - Behavior-Elements

Russell Ackoff - System of Concepts - Behavior

WordNet - Behavior and Activity

Super Types

Operating Asset Type (from partition: Structural Partition of Operating Asset Type)

Power Type of

Individual Behavior

Dictionary

SysFEAT System Operating Framework

Lexical Scope

Architecture Container

Framework Mapping

ArchiMate - Top-Level Language Structure : Behavior Element
ArchiMate - Generic Metamodel : Behavior Element

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Behavior	[*..0]	Behavior Type	Behavior Type	Abstract Relationship
Realized Behavior	[*..0]	Behavior Type	Behavior Type	Abstract Relationship
Start Event	[1..1]	Behavioral Event	Behavior Type	Abstract Relationship A Start Event is a temporal border of a Behavior Type representating its reaction to a Behavioral Event that starts it.
Input	[*..0]	Outcome Event	Behavior Type	Abstract Relationship An Input is a border of a Behavior Type that refers to the reaction to an Outcome Event that starts the Behavior Type.
End Event	[1..1]	Behavioral Event	Behavior Type	Abstract Relationship An End Event is a temporal border of a Behavior Type representing the production of a Behavioral Event that ends it.
Output	[*..0]	Outcome Event	Behavior Type	Abstract Relationship An Output is a border of a Behavior Type that refers to the production of an Outcome Event that ends the Behavior Type.
Behavior Temporal Border	[*..0]	Behavioral Event	Behavior Type	Abstract Relationship
Behavior Participant	[*..0]	Agent Type	Behavior Type	Abstract Relationship A Behavior Participant is the participation of an Agent Type in a Behavior Type.
Behavior Part	[*..0]	Behavior Type	Behavior Type	Abstract Relationship A composed Behavior Type that is a part of the parent Behavior Type.
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relationship where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].
Enumerated Definition	[1..1]	Service Interface	Behavior Type
Enumerated Definition	[1..1]	Interaction Process Type	Behavior Type
Enumerated Definition	[1..1]	Action Process Type	Behavior Type

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 986cd4ec5ffca3ac.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

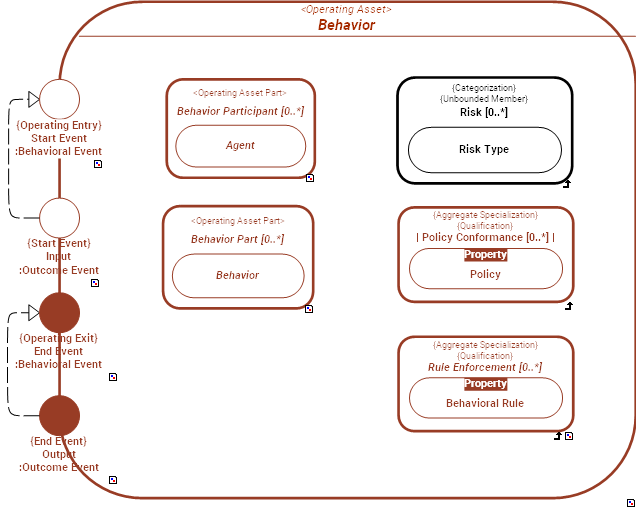

BORDERS

Name	Super type	Border Type	Description
Behavior Temporal Border	Bounded Individual::Temporal Border	Behavioral Event
End Event	Operating Asset Type::Operating Exit Behavior Type::Behavior Temporal Border	Behavioral Event	An End Event is a temporal border of a Behavior Type representing the production of a Behavioral Event that ends it.
Input	Behavior Type::Start Event	Outcome Event	An Input is a border of a Behavior Type that refers to the reaction to an Outcome Event that starts the Behavior Type.
Output	Behavior Type::End Event	Outcome Event	An Output is a border of a Behavior Type that refers to the production of an Outcome Event that ends the Behavior Type.
Start Event	Operating Asset Type::Operating Entry Behavior Type::Behavior Temporal Border	Behavioral Event	A Start Event is a temporal border of a Behavior Type representating its reaction to a Behavioral Event that starts it.
