CLASS OF CLASS OF INDIVIDUAL - Resource Interaction Process

Description

Abstract Concept

A Resource Interaction Process is a story that describes how the components of a Resource Agent Type interacts to produce and consume Resource Outcome Events.

This includes:

1) A course of events represented by Resource Object Flows depicting the steps towards the delivery of expected Resource Outcome Events.

2) Interacting Resource Agent Types who participate to the story.

Functional Domain: SOF - Resource System Operating Pattern (R-SOF)

The SOF - Resource System Operating Pattern (R-SOF) domain is a conceptualization level that comprises abstract entities that belong to the physical space and comprise Human resources, Software resources, Hardware resources and natural resources.

Super Types

Interaction Process Type (from partition: Conceptualization Levels of Interaction Process Type)

Resource Behavior (from partition: Structural Partition of Resource Behavior)

Dictionary

Dictionary of SysFEAT concepts

Conceptualization Levels

Resource

Lexical Scope

Architecture Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Enterprise Scenario	[*..0]	Resource Interaction Process	Resource Interaction Process	Abstract Relationship
Realized Enterprise Scenario	[*..0]	Resource Interaction Process	Resource Interaction Process	Abstract Relationship
Resource Object Flow	[*..0]	Resource Outcome Event	Resource Interaction Process	Abstract Relationship
Resource Scenario Participant	[*..0]	Resource Agent Type	Resource Interaction Process
Behavior Temporal Border	[*..0]	Behavioral Event	Behavior Type	Abstract Relationship
Realized Business Operating Asset	[*..0]	Resource Operating Asset	Resource Operating Asset	Abstract Relationship
Fulfilled Resource Capability	[*..0]	Resource Capability	Resource Operating Asset	Abstract Relationship Resource Capability(ies) fulfilled by a Resource Operating Asset.
Resource Rule Enforcement	[*..0]	Resource Rule	Resource Operating Asset	Abstract Relationship
Referencing Relationship	[*..0]	Entity	Entity	Abstract Relationship A Referencing Relationship is a Relationship that points at its target Entity through Reference Adjacency.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relationship where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].
Existential Independence	[*..0]	Entity	Entity	Abstract Relationship An Existential Independence relationship is a Relationship that specifies that the existence the source Entity doesnt depend on the existence of its target Entity.The cardinality of set set of targetted Entity is [0..*].
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 7d337d67628134c5.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Resource Behavior End	Behavior Type::End Event	Resource Event
Resource Behavior Start	Behavior Type::Start Event	Resource Event
Resource Input	Behavior Type::Input	Resource Outcome Event
Resource Output	Behavior Type::Output	Resource Outcome Event

INTERNAL STRUCTURE

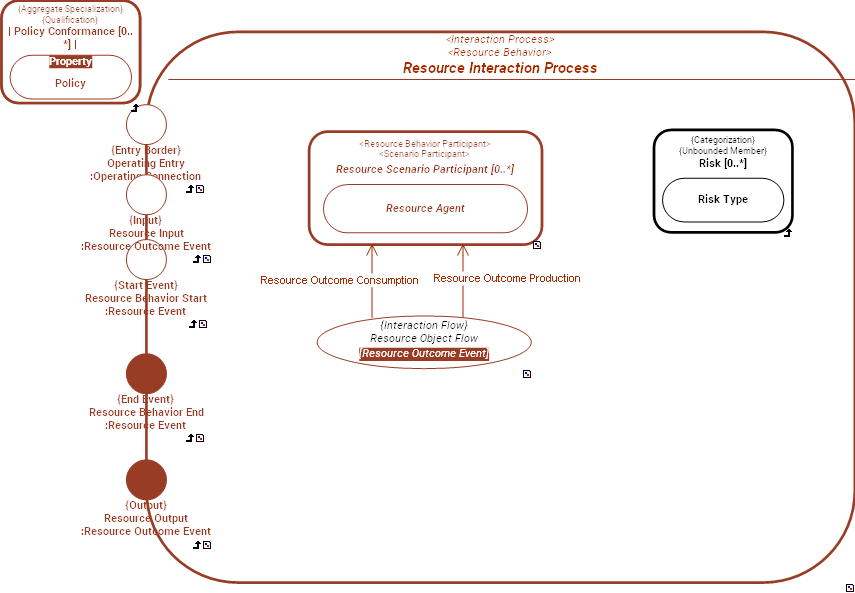

../images/7d337d67628134c5_7d337df06281371c_i.png

CONNECTORS

Connector	Source	Target	Connector Type	Description
Resource Object Flow	Resource Scenario Participant. Resource Output	Resource Scenario Participant. Business Input. Resource Input	Resource Outcome Event	Abstract Connection
