IDENTITY DIAGRAM MAPPING EXTERNAL REFERENCES

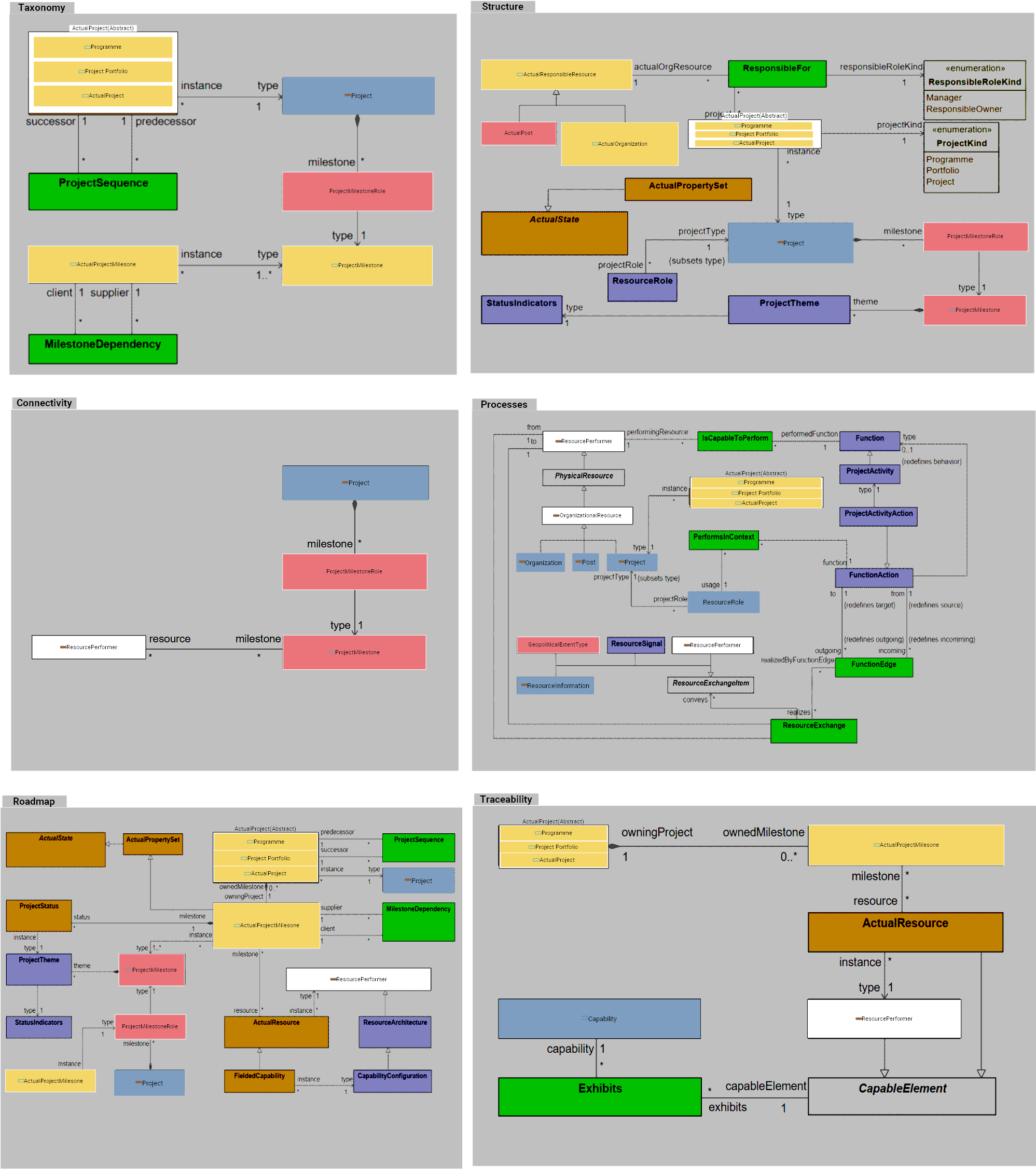

IDENTITY - UAF - Project Views

Description	Describes projects and project milestones, how those projects deliver capabilities, the organizations contributing to the projects and dependencies between projects.
References	OMG - UAF - View - Project Views
Parent Mapping	UAF Mappings

../images/ef5d0f3263229fd7_ef5d0f3963229ff3_i.png

MAPPED ENTITIES

Framework Concept	Framework Definition	SysFEAT Concept	SysFEAT Definition
ActualOrganization	An actual formal or informal organizational unit, e.g. "Driving and Vehicle Licensing Agency", "UAF team Alpha". References: OMG - UAF - ActualOrganization	Organization	An Organization is a group of people who share a common purpose and establish a functional division of labor in pursuit of their common purpose. It is the relationships between its members in the pursuit of their common purpose that give unity and identity to an organization. References: OMG - BMM - Organizational Unit OMG - UAF - ActualOrganization OpenGroup - ArchiMate - Business Internal Active Structure Element Russell Ackoff - System of concepts - FunctionalDivisionOfLabor Russell Ackoff - System of Concepts - Organizations Russell Ackoff - Transformational leadership - Social System SAFe© - Organizational Agility
ActualPost	An actual, specific post, an instance of a Post "type" - e.g., "President of the United States of America." where the Post would be president. References: OMG - UAF - ActualPost		ActualPost is not directly represented in SysFEAT. Rational: ActualPost overlaps with realtime management of HR resources, which is out of scope of Architecture Management tools.
ActualProject	A time-limited planned endeavor executed by an ActualOrganization responsible for developing, deploying or decommissioning ResourcePerformers in accordance with ActualProjectMilestones. References: OMG - UAF - Project	Project	A Project is a course of action that is being executed or has been selected for execution. An enterprise's Initiatives represent the choices the enterprise has made about how to pursue the change that allows it to achieve its objectives. References: DoDAF2 - Project Viewpoint Martin Fowler - Products over Projects OMG - UAF - ActualProject OpenGroup - TOGAF - Definitions - Work Package
ActualProject(Abstract)
ActualProjectMilesone	An event with a start date in a ActualProject from which progress is measured. References: OMG - UAF - ActualProjectMileStone	Project Milesone	A Project Milestone defines an intermediate delivery gate in the project lifecycle. Project Deliverables can be associated with a Project Milesone in case they are delivered during the project and not at the end of the project. Note: the association of deliverables to milestone do not affect their object life initialization; the object life should be manually updated accordingly if this is relevant.
ActualResponsibleResource	An abstract type grouping responsible OrganizationalResources. References: OMG - UAF - ActualResponsibleResource	Responsible Human Entity	A Responsible Human Entity is a Person or an organisation (group of people) capable of purposeful action, decision-making, and problem-solving within a system or organization. As Resource Agents, Responsible Human Entityies possess autonomy, adaptability, and the ability to influence outcomes, distinguishing them from unpurposeful entities like Business Systems (software and hardware) or Natural Resources. They can be held responsible for their actions, hence are Responsible Human Entityies. References: OMG - UAF - ActualResponsibleResource
Capability	An enterprise's ability to Achieve a desired effect realized through a combination of ways and means (e.g. CapabilityConfigurations) along with specified measures. References: OMG - UAF - Capability	Business Capability	A Business Capability is a conceptual Capability that benefits to Customers (internal or external) of the enterprise. It expresses an ability to produce Conceptual Outcome Events. A Business Capability is defined by its intended Enterprise Outcome Events and the conditions (Condition Property) under which the production of the Enterprise Outcome Events shall be proceeded. The actual Condition Scale Values for a given Business Capability at different stages of Enterprise Initiatives is given by their exhibition (Exhibited Capability). References: OMG - BACM - Capability OMG - UAF - Capability OpenGroup - ArchiMate - Capability OpenGroup - TOGAF - Definition - Business Capability
GeopoliticalExtentType	GeopoliticalExtentType is not implemented as a subtype of OperationalExchangeItem. GeopoliticalExtentType was an initial requirement from DoDAF2 which hasn't been adopted by the final DoDAF specification. It is a legacy component of UAF. References: OMG - UAF - GeopoliticalExtentType		GeopoliticalExtentType is not directly represented in SysFEAT. Rational: GeopoliticalExtentType was an initial requirement from DoDAF2 which hasn't been adopted by the final DoDAF specification. It is a legacy component of UAF.
Organization	A group of OrganizationalResources (Persons, Posts, Organizations and Responsibilities) associated for a particular purpose.	Department Type	A Department Type is a Mezzo Org-Unit which serves as an administrative unit template in both government and business Organizations. Examples: - Sales department; - Finance department; - Logistics department.. References: OMG - UAF - Organization OpenGroup - ArchiMate - Business-Actor OpenGroup - ArchiMate - Business-Collaboration OpenGroup - TOGAF - Enterprise Metamodel - Actor Russell Ackoff - System of concepts - FunctionalDivisionOfLabor Russell Ackoff - System of Concepts - Organizations UCF Glossary - Department
OrganizationalResource	An abstract type for Organization, Person, Post and Responsibility. References: OMG - UAF - OrganizationalResource	Org-Unit	An Org-Unit is a type of Human Resource that represent a unit of social groups within an organization, responsible for operating one or more enterprise's Business Functions. References: Christensen Institute - Modularity Humanresourcesedu.org - Human Resource OMG - UAF - OrganizationalResource OpenGroup - ArchiMate - Business Internal Active Structure Element OpenGroup - ArchiMate - Business-Actor Russell Ackoff - System of Concepts - Organizations
Post	A type of job title or position that a person can fill (e.g. Lawyer, Solution Architect, Machine Operator or Chief Executive Officer). References: OMG - UAF - Post	Organizational Position	An Organizational Position is a type of position held by people when part of a Department Type. Examples: - Sales representative - Developer - Storekeeper - Architect References: OMG - UAF - Post OpenGroup - ArchiMate - Business-Actor OpenGroup - TOGAF - Definition - Role UCF Glossary - Position Description
Programme	References: OMG - UAF - Project	Transformation Program	A Transformation Program is an Initiative that is a temporary, flexible organisation created to co-ordinate, direct and oversee the implementation of a set of related Projects and Tasks in order to deliver outcomes and benefits related to the organisation’s strategic objectives. A programme is likely to have a lifespan of several years. During a programme lifecycle, projects are initiated, executed, and closed. Programmes provide an umbrella under which these projects can be co-ordinated. The programme integrates the projects so that it can deliver an outcome greater than the sum of its parts. Programs are defined upon a given domain (e.g. Business, Information Technology) A program domain gathers all the projects managed from the same perspective in terms of portfolio management decisions. Project Portfolios are therefore also attached to programs; by default, one portfolio of each portfolio type is created when creating a new program. References: Martin Fowler - Products over Projects OMG - UAF - ProjectKind
Project	A type that represents a planned endeavor executed by an ActualOrganization responsible for developing, deploying or decommissioning ResourcePerformers in accordance with ActualProjectMilestones.	Project Type	A category of project. References: OMG - UAF - Project
Project Portfolio	References: OMG - UAF - Project	Project Portfolio	A Project Portfolio gathers all the projects of a given Project Domain in the defined project state (Demands, Candidate Projects, Ongoing Projects). In a Portfolio, Projects can be assessed and compared against several criteria: - Projects Criteria: these are derived from projects information (e.g. costs) or from project qualitative assessment (e.g. strategic alignment level, business value level) - Portfolio criteria: these are additional criteria which can be defined at portfolio level on top of the projects criteria (ex : score, priority, rank) The project workflow can be actioned from the project portfolio lines. References: OMG - UAF - ProjectKind
ProjectMilestone	A type of event in a Project by which progress is measured.	Project Milesone	A Project Milestone defines an intermediate delivery gate in the project lifecycle. Project Deliverables can be associated with a Project Milesone in case they are delivered during the project and not at the end of the project. Note: the association of deliverables to milestone do not affect their object life initialization; the object life should be manually updated accordingly if this is relevant.
ProjectMilestoneRole	The role played by a ProjectMilestone in the context of a Project References: OMG - UAF - ProjectMilestoneRole
ResourceInformation	A formalized representation of information that is managed by or exchanged between systems. References: OMG - UAF - ResourceInformation	Data Asset	A Data Asset represents the abstract structure of any kind of data that can be processed and memorized by a Business Software System. A Data Asset is either a Data Entity or a Data Property. Only Data Entitys can have identity and states. Data Propertys only handle raw data. Data Assets are managed in Data Catalogs. References: NIST - Data Asset UCF Glossary - Data UCF Glossary - Data Element
ResourcePerformer	An abstract grouping of elements that can perform Functions. References: OMG - UAF - ResourcePerformer	Business Agent	A Business Agent is a Resource Agent which produces and reacts to Business Outcome Events of the enterprise. A Business Agent can be a Human Resource (Organizational Position or Department Type), a Business System (Business Software System or Concrete Hardware System) or a Capability Configuration (an assembly of Org-Units and Business Systems. References: OMG - UAF - ResourcePerformer OpenGroup - TOGAF - Definition - Business System
ResourceRole	An interaction point for a ResourcePerformer through which it can interact with the outside environment and which is defined by a ResourceInterface. References: OMG - UAF - ResourceRole OMG - UAF - ResourceRole (Profile Spec)	Resource Agent Part

EXTERNAL REFERENCES

Framework reference	SysFEAT Description
OMG - UAF - ActualOrganization	An actual formal or informal organizational unit, e.g. "Driving and Vehicle Licensing Agency", "UAF team Alpha". An actual formal or informal organizational unit, e.g. "Driving and Vehicle Licensing Agency", "UAF team Alpha". An actual formal or informal organizational unit, e.g. "Driving and Vehicle Licensing Agency", "UAF team Alpha". Organization An Organization is a group of people who share a common purpose and establish a functional division of labor in pursuit of their common purpose. It is the relationships between its members in the pursuit of their common purpose that give unity and identity to an organization.
OMG - UAF - ActualPost	An actual, specific post, an instance of a Post "type" - e.g., "President of the United States of America." where the Post would be president. An actual, specific post, an instance of a Post "type" - e.g., "President of the United States of America." where the Post would be president. An actual, specific post, an instance of a Post "type" - e.g., "President of the United States of America." where the Post would be president.
OMG - UAF - ActualProjectMileStone	An event with a start date in a ActualProject from which progress is measured. An event with a start date in a ActualProject from which progress is measured.
OMG - UAF - ActualResponsibleResource	An abstract type grouping responsible OrganizationalResources. An abstract type grouping responsible OrganizationalResources. An abstract type grouping responsible OrganizationalResources. Responsible Human Entity A Responsible Human Entity is a Person or an organisation (group of people) capable of purposeful action, decision-making, and problem-solving within a system or organization. As Resource Agents, Responsible Human Entityies possess autonomy, adaptability, and the ability to influence outcomes, distinguishing them from unpurposeful entities like Business Systems (software and hardware) or Natural Resources. They can be held responsible for their actions, hence are Responsible Human Entityies.
OMG - UAF - Capability	Business Capability A Business Capability is a conceptual Capability that benefits to Customers (internal or external) of the enterprise. It expresses an ability to produce Conceptual Outcome Events. A Business Capability is defined by its intended Enterprise Outcome Events and the conditions (Condition Property) under which the production of the Enterprise Outcome Events shall be proceeded. The actual Condition Scale Values for a given Business Capability at different stages of Enterprise Initiatives is given by their exhibition (Exhibited Capability). Capability A Capability is a functional Asset Property which refers to the ability to produce an Outcome Event. Capabilitys are fulfilled by Agents performing Processes and interacting with other Agents to produce the desired Outcome Event. An enterprise's ability to Achieve a desired effect realized through a combination of ways and means (e.g. CapabilityConfigurations) along with specified measures. An enterprise's ability to Achieve a desired effect realized through a combination of ways and means (e.g. CapabilityConfigurations) along with specified measures. An enterprise's ability to Achieve a desired effect realized through a combination of ways and means (e.g. CapabilityConfigurations) along with specified measures. An enterprise's ability to Achieve a desired effect realized through a combination of ways and means (e.g. CapabilityConfigurations) along with specified measures.
OMG - UAF - GeopoliticalExtentType	A type of geospatial extent whose boundaries are defined by declaration or agreement by political parties. GeopoliticalExtentType is not implemented as a subtype of OperationalExchangeItem. GeopoliticalExtentType was an initial requirement from DoDAF2 which hasn't been adopted by the final DoDAF specification. It is a legacy component of UAF. GeopoliticalExtentType is not implemented as a subtype of OperationalExchangeItem. GeopoliticalExtentType was an initial requirement from DoDAF2 which hasn't been adopted by the final DoDAF specification. It is a legacy component of UAF. GeopoliticalExtentType is not implemented as a subtype of OperationalExchangeItem. GeopoliticalExtentType was an initial requirement from DoDAF2 which hasn't been adopted by the final DoDAF specification. It is a legacy component of UAF.
OMG - UAF - OrganizationalResource	Org-Unit An Org-Unit is a type of Human Resource that represent a unit of social groups within an organization, responsible for operating one or more enterprise's Business Functions. An abstract type for Organization, Person, Post and Responsibility. An abstract type for Organization, Person, Post and Responsibility. An abstract type for Organization, Person, Post and Responsibility. A group of OrganizationalResources (Persons, Posts, Organizations and Responsibilities) associated for a particular purpose. A group of OrganizationalResources (Persons, Posts, Organizations and Responsibilities) associated for a particular purpose. A group of OrganizationalResources (Persons, Posts, Organizations and Responsibilities) associated for a particular purpose.
OMG - UAF - Post	Organizational Position An Organizational Position is a type of position held by people when part of a Department Type. Examples: - Sales representative - Developer - Storekeeper - Architect A type of job title or position that a person can fill (e.g. Lawyer, Solution Architect, Machine Operator or Chief Executive Officer). A type of job title or position that a person can fill (e.g. Lawyer, Solution Architect, Machine Operator or Chief Executive Officer). A type of job title or position that a person can fill (e.g. Lawyer, Solution Architect, Machine Operator or Chief Executive Officer). A type of job title or position that a person can fill (e.g. Lawyer, Solution Architect, Machine Operator or Chief Executive Officer).
OMG - UAF - Project	A time-limited planned endeavor executed by an ActualOrganization responsible for developing, deploying or decommissioning ResourcePerformers in accordance with ActualProjectMilestones. A type that represents a planned endeavor executed by an ActualOrganization responsible for developing, deploying or decommissioning ResourcePerformers in accordance with ActualProjectMilestones. Project Type A category of project.
OMG - UAF - ProjectMilestoneRole	The role played by a ProjectMilestone in the context of a Project
OMG - UAF - ResourceInformation	Logical Data Entity A Logical Data Entity is a logical structure of a Data Entity. As any Data Entity, it has an independent existence and can be uniquely identified. A Logical Data Entity is characterized by Logical Relationships it has with other Logical Data Entity(ies) and by its Attributes. A formalized representation of information that is managed by or exchanged between systems. A formalized representation of information that is managed by or exchanged between systems. A formalized representation of information that is managed by or exchanged between systems. A formalized representation of information that is managed by or exchanged between systems. A formalized logical representation of information that is managed by or exchanged between systems. A formalized physical representation of information that is managed by or exchanged between systems.
OMG - UAF - ResourcePerformer	Business Agent A Business Agent is a Resource Agent which produces and reacts to Business Outcome Events of the enterprise. A Business Agent can be a Human Resource (Organizational Position or Department Type), a Business System (Business Software System or Concrete Hardware System) or a Capability Configuration (an assembly of Org-Units and Business Systems. An abstract grouping of elements that can perform Functions. An abstract grouping of elements that can perform Functions. An abstract grouping of elements that can perform Functions. An abstract grouping of elements that can perform Functions. An abstract grouping of elements that can perform Functions. An abstract grouping of elements that can perform Functions.
OMG - UAF - ResourceRole	An interaction point for a ResourcePerformer through which it can interact with the outside environment and which is defined by a ResourceInterface. Usage of a ResourcePerformer in the context of another ResourcePerformer. Creates a whole-part relationship. An interaction point for a ResourcePerformer through which it can interact with the outside environment and which is defined by a ResourceInterface. Usage of a ResourcePerformer in the context of another ResourcePerformer. Creates a whole-part relationship.
OMG - UAF - ResourceRole (Profile Spec)	An interaction point for a ResourcePerformer through which it can interact with the outside environment and which is defined by a ResourceInterface. An interaction point for a ResourcePerformer through which it can interact with the outside environment and which is defined by a ResourceInterface. Usage of a ResourcePerformer in the context of another ResourcePerformer. Creates a whole-part relationship. Usage of a ResourcePerformer in the context of another ResourcePerformer. Creates a whole-part relationship.
