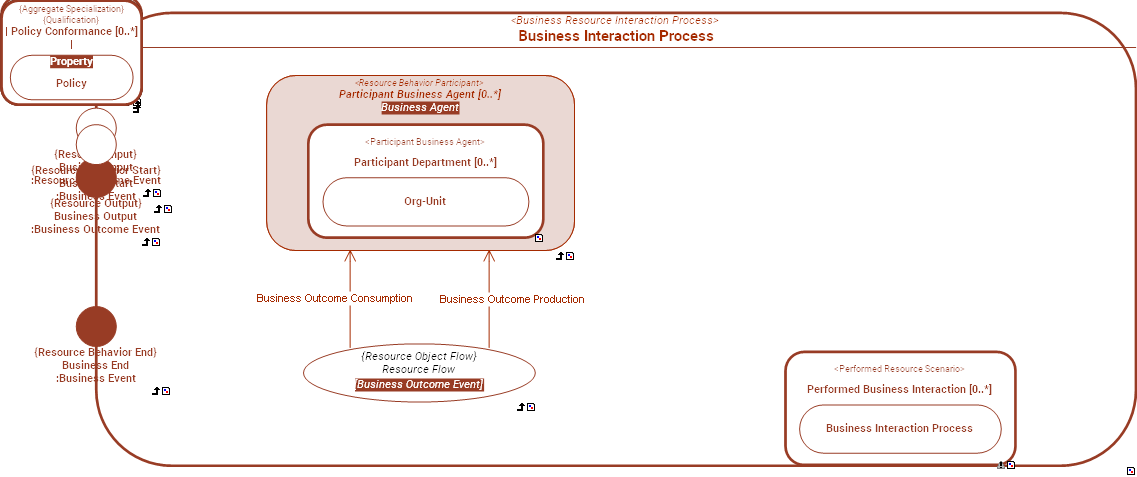

Business Interaction Process

CLASS OF CLASS OF INDIVIDUAL - Business Interaction Process

Description

A Business Interaction Process is a story describing how the components of a Business-Entity (Department Types) interact to produce Business Outcome Events.

This includes:

- A course of events represented by information flows depicting the steps towards the delivery of expected Outcomes.

- Components of an Department Type (Sub-Department Types or Organizational Position) that participate to the story.

Functional Domain: Organization & Processes

The Organization & Processes domain is used to shape how business units operate to deliver the goods and services for which they are responsible.

Super Types

Business Resource Interaction Process (from partition: Resource Agent Nature of Business Resource Interaction Process)

Dictionary

Dictionary of SysFEAT concepts

Lexical Scope

Architecture Container

Framework Mapping

UAF - Personal Views : ResourceInteractionScenario

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Participant Department	[*..0]	Org-Unit Type	Business Interaction Process
Specialized Resource Scenario	[*..0]	Business Resource Interaction Process	Business Resource Interaction Process
Realized Logical Scenario	[*..0]	Conceptual Interaction Scenario	Business Resource Interaction Process
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relation).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Reference Relation).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

LOGICAL FORMULATION

LOGIC-AGDA RDF

File: 6f4b93a15fd3b6bf.agda

File: 6f4b93a15fd3b6bf.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
Business End	Resource Behavior::Resource Behavior End	Business Event	A Business End is a temporal border of a Resource Behavior that refers to the end of the Resource Behavior through the production of a Business Event.
Business Input	Resource Behavior::Resource Input	Resource Outcome Event	A Business Input is a border of a Resource Behavior that refers to the consumption of an Business Outcome Event that starts the Resource Behavior.
Business Output	Resource Behavior::Resource Output	Business Outcome Event	A Business Output is a border of a Resource Behavior that refers to the production of a Business Outcome Event that ends the Resource Behavior.
Business Start	Resource Behavior::Resource Behavior Start	Business Event	A Business Start is a temporal border of a Resource Behavior that refers to the start of the Resource Behavior triggered by consumption of a Business Event.
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Operating Exit	Bounded Aggregate::Exit Border	Operating Connection
