Business Resource Interaction Process

CLASS OF CLASS OF INDIVIDUAL - Business Resource Interaction Process

Description

Abstract Concept

A Business Resource Interaction Process is a story involving the components of a Business Agent Type interacting in order to produce Business Outcome Events.

This includes:

1) A course of events represented by Resource Flows depicting the steps towards the delivery of expected Business Outcome Events.

2) Component Business Agent Types that participate to the story.

Resource Agent Nature of Business Resource Interaction Process: a Business Resource Interaction Process is either a Business System Interaction Process or a Business Interaction Process

Functional Domain: SOF - Business Resource Operating Pattern (B-SOF)

The SOF - Business Resource Operating Pattern (B-SOF) domain defines concepts and relationships used to model how physical resources (Business Operating Assets) operates/functions in Business Resource Ecosystems to deliver Business Outcome Events.

Super Types

Business Behavior (from partition: Structural Partition of Business Behavior)

Resource Interaction Process

Dictionary

Dictionary of SysFEAT concepts

Lexical Scope

Architecture Container

Framework Mapping

UAF - Resource Views : ResourceInteractionScenario

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Resource Scenario	[*..0]	Business Resource Interaction Process	Business Resource Interaction Process
Realized Logical Scenario	[*..0]	Conceptual Interaction Scenario	Business Resource Interaction Process
Resource Flow	[*..0]	Business Outcome Event	Business Resource Interaction Process	Abstract Relationship
Business Rule Enforcement	[*..0]	Business Resource Rule	Business Resource Interaction Process	Abstract Relationship
Participant Business Agent	[*..0]	Business Agent Type	Business Resource Interaction Process	Abstract Relationship
Resource Scenario Participant	[*..0]	Resource Agent Type	Resource Interaction Process
Supported Process Family	[*..0]	Process Family	Business Behavior
Business Input	[*..0]	Resource Outcome Event	Business Behavior	A Business Input is a border of a Resource Behavior that refers to the consumption of an Business Outcome Event that starts the Resource Behavior.
Business Start	[1..1]	Business Event	Business Behavior	Abstract Relationship A Business Start is a temporal border of a Resource Behavior that refers to the start of the Resource Behavior triggered by consumption of a Business Event.
Business End	[1..1]	Business Event	Business Behavior	Abstract Relationship A Business End is a temporal border of a Resource Behavior that refers to the end of the Resource Behavior through the production of a Business Event.
Business Output	[*..0]	Business Outcome Event	Business Behavior	A Business Output is a border of a Resource Behavior that refers to the production of a Business Outcome Event that ends the Resource Behavior.
Business Data Store	[*..0]	Data Domain	Business Behavior	Abstract Relationship
Behavior Temporal Border	[*..0]	Behavioral Event	Behavior Type	Abstract Relationship
Class of Meronymy	[*..0]	First Order Class	First Order Class	Abstract Relationship
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relation).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Reference Relation).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relation where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].
Existential Independence	[*..0]	Entity	Entity	Abstract Relationship An Existential Independence relation is a Relation that specifies that the existence of the source Entity doesnt depend on the existence of its target Entity.The cardinality of set of targetted Entity is [0..*].

LOGICAL FORMULATION

LOGIC-AGDA RDF

File: 230b35b461d8884d.agda

File: 230b35b461d8884d.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

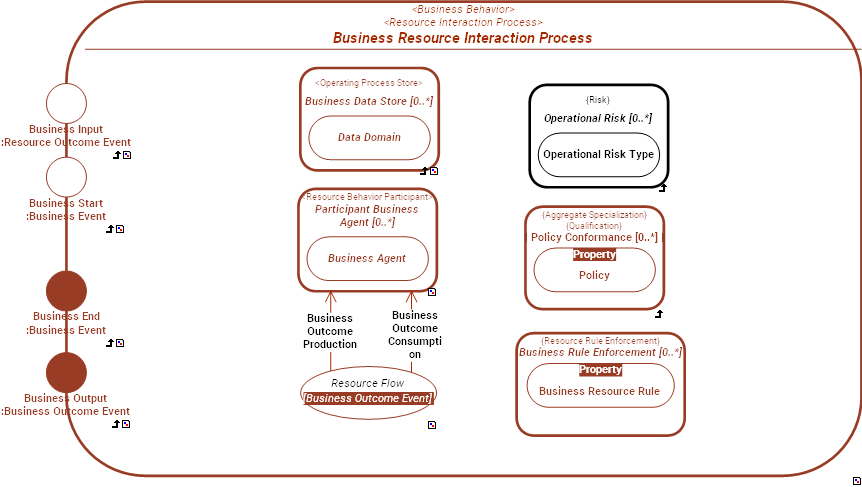

BORDERS

Name	Super type	Border Type	Description
Business End	Resource Behavior::Resource Behavior End	Business Event	A Business End is a temporal border of a Resource Behavior that refers to the end of the Resource Behavior through the production of a Business Event.
Business Input	Resource Behavior::Resource Input	Resource Outcome Event	A Business Input is a border of a Resource Behavior that refers to the consumption of an Business Outcome Event that starts the Resource Behavior.
Business Output	Resource Behavior::Resource Output	Business Outcome Event	A Business Output is a border of a Resource Behavior that refers to the production of a Business Outcome Event that ends the Resource Behavior.
Business Start	Resource Behavior::Resource Behavior Start	Business Event	A Business Start is a temporal border of a Resource Behavior that refers to the start of the Resource Behavior triggered by consumption of a Business Event.
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Operating Exit	Bounded Aggregate::Exit Border	Operating Connection
