CLASS OF CLASS OF INDIVIDUAL - Interaction Process Type

Description

Abstract Concept

An Interaction Process Type is a story (Behavior Type) that describes how the components of an Agent Type interacts to produce and consume Outcome Events.
This includes:

1) A course of events represented by Object Flows depicting the succesion of intermediate Outcome Events towards the production of the final Outcome Events.

2) Interacting Agent Types who participate to the story.

Conceptualization Levels of Interaction Process Type: an Interaction Process Type is either a Conceptual Interaction Scenario or a Resource Interaction Process

Functional Domain: System Operating Framework - SOF

The System Operating Framework - SOF models how an active system (Agent Type) operates/functions (Behavior Type) in its Operating Eco-System to produce Outcome Events that benefit (value) to other Agent Types or affect (have an effect upon) these Agent Types.

External references

OMG - UAF - InteractionScenario

Super Types

Behavior Type (from partition: Structural Partition of Behavior Type)

Dictionary

SysFEAT System Operating Framework

Lexical Scope

Architecture Container

Framework Mapping

UAF - Resource Views : InteractionScenario
UAF - Personal Views : InteractionScenario
UAF - Operational Views : InteractionScenario

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Specialized Scenario	[*..0]	Interaction Process Type	Interaction Process Type	Abstract Relationship
Realized Scenario	[*..0]	Interaction Process Type	Interaction Process Type	Abstract Relationship
Interaction Flow	[*..0]	Outcome Event	Interaction Process Type	Abstract Relationship
Scenario Participant	[*..0]	Agent Type	Interaction Process Type	Abstract Relationship A Scenario Participant is a Behavior Participant engaged in Interaction Flow the context of an Interaction Process Type.
Start Event	[1..1]	Behavioral Event	Behavior Type	Abstract Relationship A Start Event is a temporal border of a Behavior Type representating its reaction to a Behavioral Event that starts it.
Input	[*..0]	Outcome Event	Behavior Type	Abstract Relationship An Input is a border of a Behavior Type that refers to the reaction to an Outcome Event that starts the Behavior Type.
End Event	[1..1]	Behavioral Event	Behavior Type	Abstract Relationship An End Event is a temporal border of a Behavior Type representing the production of a Behavioral Event that ends it.
Output	[*..0]	Outcome Event	Behavior Type	Abstract Relationship An Output is a border of a Behavior Type that refers to the production of an Outcome Event that ends the Behavior Type.
Behavior Temporal Border	[*..0]	Behavioral Event	Behavior Type	Abstract Relationship
Referencing Relationship	[*..0]	Entity	Entity	Abstract Relationship A Referencing Relationship is a Relationship that points at its target Entity through Reference Adjacency.
Existential Dependency	[1..1]	Entity	Entity	Abstract Relationship An Existential Dependency relationship is a Relationship where the source Entitys existence depends on the existence of the target Entity.The cardinality of the set of targetted Entity is [1..1].
Existential Independence	[*..0]	Entity	Entity	Abstract Relationship An Existential Independence relationship is a Relationship that specifies that the existence the source Entity doesnt depend on the existence of its target Entity.The cardinality of set set of targetted Entity is [0..*].
Hierarchical Member	[*..0]	Building Block	Aggregate Block	A Hierarchical Member is an Aggregate Member that is also a Block Lexical Scope for the Building Block it aggregates: it relates its aggregated block by nesting (see Nesting Relationship).Hierarchical Members are used to build hierarchical structures of Building Blocks, in constrast to Block Members which are used to build network structures of Building Blocks.
Block Member	[*..0]	Building Block	Aggregate Block	A Block Member is an Aggregate Member that aggregates its releated Building Block by reference (see Referencing Relationship).Block Members are used to build network structures of Building Blocks while Hierarchical Members are used to build hierarchical structures of Building Blocks.

SERIALIZATION FORMAT

TEXTUAL SYNTAX RDF

File: 333f35ee5dde0c8c.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
Behavior Temporal Border	Bounded Individual::Temporal Border	Behavioral Event
End Event	Operating Asset Type::Operating Exit Behavior Type::Behavior Temporal Border	Behavioral Event	An End Event is a temporal border of a Behavior Type representing the production of a Behavioral Event that ends it.
Input	Behavior Type::Start Event	Outcome Event	An Input is a border of a Behavior Type that refers to the reaction to an Outcome Event that starts the Behavior Type.
Output	Behavior Type::End Event	Outcome Event	An Output is a border of a Behavior Type that refers to the production of an Outcome Event that ends the Behavior Type.
Start Event	Operating Asset Type::Operating Entry Behavior Type::Behavior Temporal Border	Behavioral Event	A Start Event is a temporal border of a Behavior Type representating its reaction to a Behavioral Event that starts it.

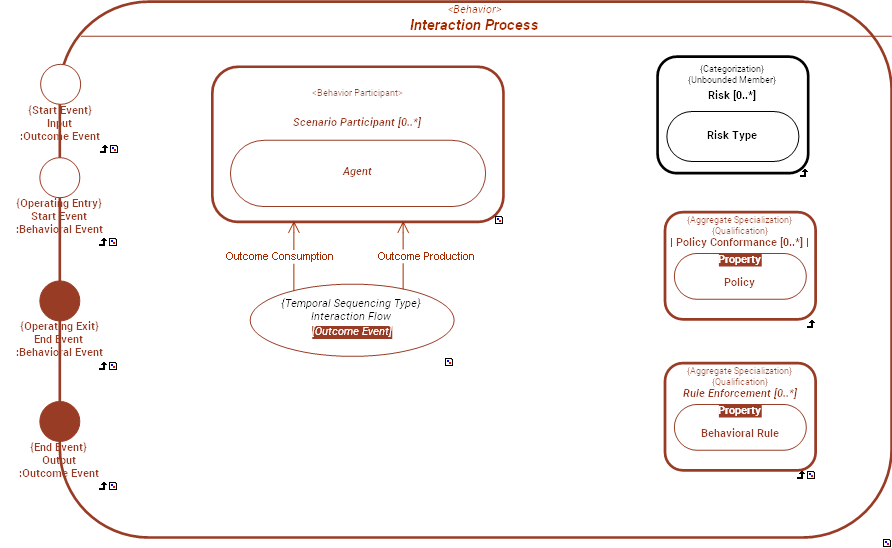

INTERNAL STRUCTURE

../images/333f35ee5dde0c8c_07e7372c5eccd7a2_i.png

CONNECTORS

Connector	Source	Target	Connector Type	Description
Interaction Flow	Scenario Participant. Output	Scenario Participant. Input	Outcome Event	Abstract Connection References: OMG - UAF - InteractionMessage
