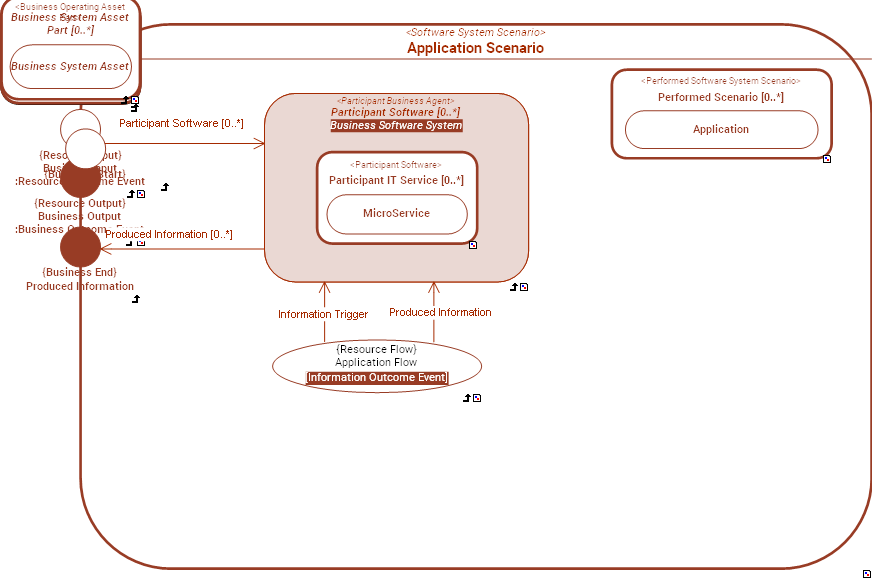

Application Scenario

CLASS OF CLASS OF INDIVIDUAL - Application Scenario

Description

An Application Scenario is a story involving the components of an Application (Application Component or MicroService), interacting in order to produce Information Outcome Events.

This includes:

1) A course of events represented by Application Flows depicting the story towards the delivery of expected Information Outcome Events.

2) Interacting Application Components who participate to the story.

Functional Domain: Application Functional Architecture

The Application Functional Architecture domain is used to describe the functional structure and behavior of Business Software Systems.

External references

C4 Model - Supplementary diagrams -Dynamic Diagram

OpenGroup - ArchiMate - Application Interaction

Super Types

Software System Scenario

Dictionary

SysFEAT Enterprise concepts

Lexical Scope

Architecture Container

RELATIONSHIPS

Simple Graph Graph & Inheritance Table

Simple Graph

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Graph & Hierarchy

Composition: ➝ Classification: ➝ Specialization: ➝ Instance Of: --> Enumerated definition: ➝ Syntax: ➝

Relationship Table

Relationship	Cardinality	Target Entity	Source Entity	Description
Participant IT Service	[*..0]	MicroService	Application Scenario
Performed Scenario	[*..0]	Application	Application Scenario
Application Flow	[*..0]	Information Outcome Event	Software System Scenario
Specialized Business System Scenario	[*..0]	Business System Interaction Process	Business System Interaction Process
Specialized Resource Scenario	[*..0]	Business Resource Interaction Process	Business Resource Interaction Process
Realized Logical Scenario	[*..0]	Conceptual Interaction Scenario	Business Resource Interaction Process
Fulfilled Functionality	[*..0]	Functionality	Business System Asset
Fulfilled Requirement	[*..0]	Requirement	Business System Asset
System Rule Enforcement	[*..0]	System Rule	Business System Asset
Fulfilled Business Capability	[*..0]	Business Capability	Business Operating Asset
Process Family	[*..0]	Process Family	Business Operating Asset	Classification of Business Operating Asset a by a Process Family.
Resource Scenario Participant	[*..0]	Resource Agent Type	Resource Interaction Process
Supported Process Family	[*..0]	Process Family	Business Behavior
Business Output	[*..0]	Business Outcome Event	Business Behavior	A Business Output is a border of a Resource Behavior that refers to the production of a Business Outcome Event that ends the Resource Behavior.
Business Input	[*..0]	Resource Outcome Event	Business Behavior	A Business Input is a border of a Resource Behavior that refers to the consumption of an Business Outcome Event that starts the Resource Behavior.
Operational Risk	[*..0]	Operational Risk Type	Business Functional Asset	An Operational Risk is a kind of Risk that refers to the potential for loss resulting from inadequate structure or behavior of a Business Operating Asset.
Conceptual Schematization	[1..1]	Systemic Level Family	Operating Asset
Conceptual Schematization	[1..1]	Conceptualization Level	Operating Asset
Operating Asset Category	[*..0]	Operating Asset Category	Operating Asset
Operating Asset Categorization	[*..0]	Operating Asset Categorization	Operating Asset
Policy Conformance	[*..0]	Policy	Functional Asset	A Policy Conformance is the conformity requirement that applies a Functional Asset.
Applicable Condition Type	[*..0]	Condition Property Type	Asset Type	Set of Condition Property Types that can be applied to an Asset Type.
Classified by Bounded Individual MetaClass	[1..1]	Bounded Individual MetaClass	Asset Type
Class of Holonymy	[*..0]	First Order Class	First Order Class	Class of Holonymy is the powertype of Holonymy Relation.
Class of Meronymy	[*..0]	First Order Class	First Order Class	Class of Meronymy is the powerType of Meronymy Relation.

LOGICAL FORMULATION

LOGIC-AGDA RDF

File: 6246167661ba2d05.agda

File: 6246167661ba2d05.rdf

SEMANTIC TAXONOMY

Sub-Types Super-Types

SUB-TYPES

Click node rectangle to collapse/expand one level. Click triangle for full recursive collapse/expand. Double-click on a node to open its URL. Hover for description.

BORDERS

Name	Super type	Border Type	Description
	Business Behavior::Business Start
Business Input	Resource Behavior::Resource Input	Resource Outcome Event	A Business Input is a border of a Resource Behavior that refers to the consumption of an Business Outcome Event that starts the Resource Behavior.
Business Output	Resource Behavior::Resource Output	Business Outcome Event	A Business Output is a border of a Resource Behavior that refers to the production of a Business Outcome Event that ends the Resource Behavior.
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Operating Entry	Bounded Aggregate::Entry Border	Operating Connection
Operating Exit	Bounded Aggregate::Exit Border	Operating Connection
Operating Exit	Bounded Aggregate::Exit Border	Operating Connection
Produced Information	Business Behavior::Business End
