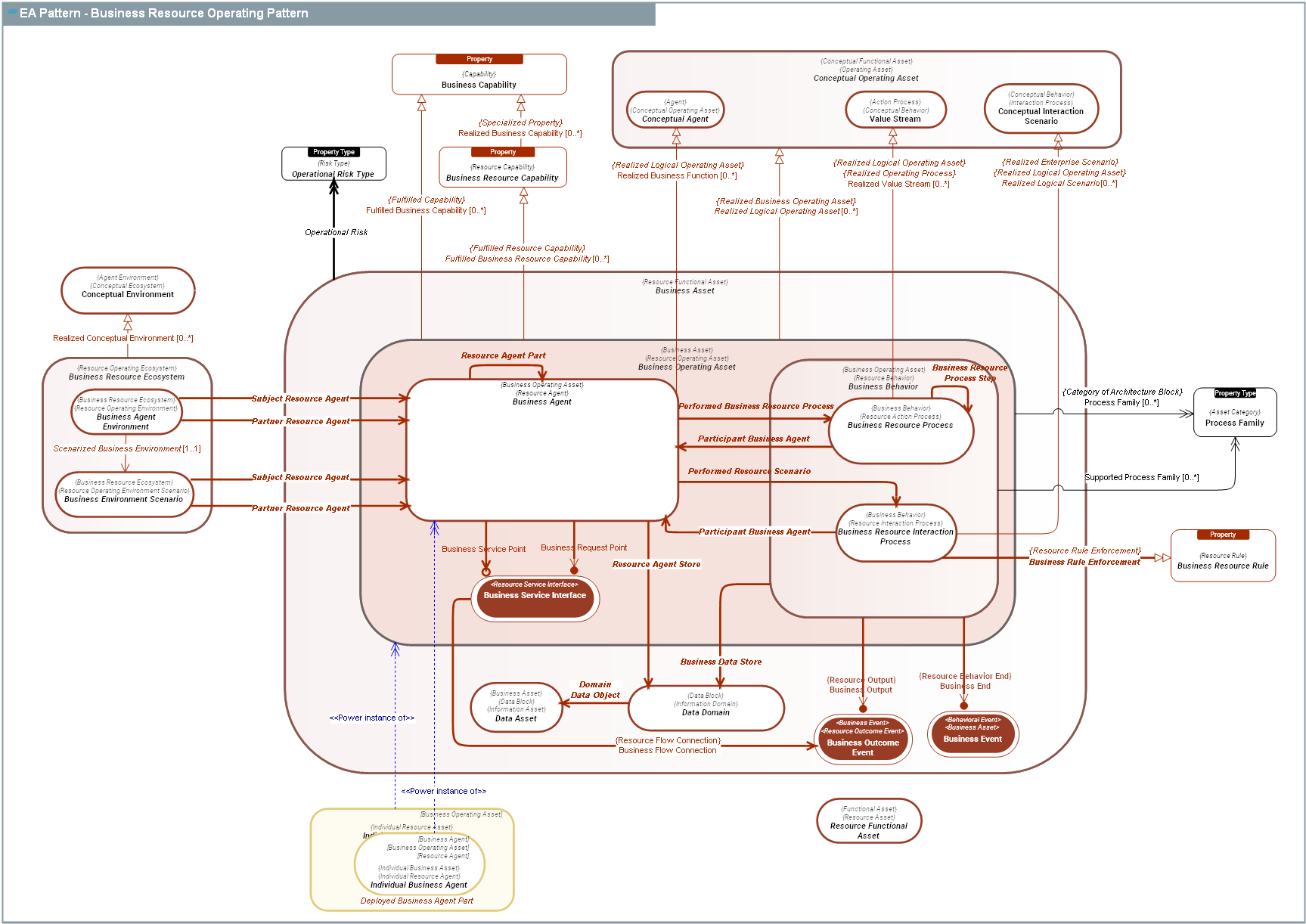

| Description | Pattern Domain The EA Pattern - Business Resource Operating Pattern domain defines concepts and relationships used to model how physical resources (Business Operating Assets) operates/functions in Business Resource Ecosystems to deliver Business Outcome Events. Business Operating Asset is an abstraction for Org-Unit, Business Software System, Concrete Hardware System and Networking System and their behaviors (Business Resource Process, Business Resource Interaction Process). The EA Pattern - Business Resource Operating Pattern is used as a template for all concrete operating domains such as People & Accountability or Application Functional Architecture. |
|---|---|
| Dictionary |
Dictionary of SysFEAT concepts |
| Parent Domain |
SysFeat Business Operation Model Patterns |
| Domain dependencies |
Architecture Assets
Conceptual Operating Model
EA Pattern - Data Domain
Resource System Operating Framework (R-SOF)
System Operating Framework - SOF |
| Concept | Description |
|---|---|
Business Capability |
A Business Capability is a conceptual Capability that benefits to Customers (internal or external) of the enterprise. It expresses an ability to produce Conceptual Outcome Events. A Business Capability is defined by its intended Enterprise Outcome Events and the conditions (Condition Property) under which the production of the Enterprise Outcome Events shall be proceeded. The actual Condition Scale Values for a given Business Capability at different stages of Enterprise Initiatives is given by their exhibition (Exhibited Capability). |
Business Event |
A Business Event is a type of business change that is used to coordinate Business Behaviors.
|
Business Outcome Event |
A Business Outcome Event is a Business Event that signals the happening of a change in the state of a Business Operating Asset, produced by the Business Behavior of a Business Agent, for the benefits of an internal or external consumer (especially Customers). |
Business Service Interface |
A Business Service Interface is a communication behavior that describes a typical course of interactions intended to produce Business Outcome Events, through the involvement of Business Agents. |
Conceptual Environment |
A Conceptual Environment is an operating context which defines the interactions (Business Interaction) of an Operating Domain with its partners (Customers).
|
Conceptual Interaction Scenario |
As part of the Conceptual Operating Model, a Conceptual Interaction Scenario is a story that frames how the components of a Conceptual Agent interacts to achieve Conceptual Outcome Events. This includes: 1) A course of events represented by Business Object Flows depicting the steps towards the delivery of expected Conceptual Outcome Events. 2) Conceptual Agents who participate to the story. |
Process Family |
A Process Family is a categorization of Business Operating Assets used to assert that a Business Operating Asset belongs to a specific process domain. |
Value Stream |
Value Streams are used to frame the Conceptual Operating Model of the enterprise: they describe how the enterprise shall operate, at the conceptual level, and helps chunking responsibilities between Conceptual Agents (Operating Domain or Business Function) . In the EA context, a Value Stream is a conceptual Action Process that represents an overarching perspective of the organization's processes aiming at producing Conceptual Outcome Events. The focus is on shaping and understanding the functional relationships and roles within the enterprise : its functional division of labor. This is not to be confused with Value Stream Mapping (VSM) which is focused on Lean optimization and is addressed with the concept of Business Process (see the Organization & Processes domain). A Value Stream is performed by Conceptual Agents who produce Conceptual Outcome Events. It is depicted as a sequence of Value Stream Stages, controlled by events and conditions. Value Stream Activitys are carried out by the involvment of Conceptual Agents as participants in the Value Stream. During its course of action, a Value Stream consumes, produces or stores Business Objects. 1) It may read or write Domain Assets in its Business Object Store. 2) It may receive Domain Assets at its boundary: reacted to Business Outcome Events. 3) It may produce Domain Assets at its boundary: produced Business Outcome Events. The course of actions of a Value Stream is constrained by the application of rules ( Conceptual Rule Enforcement) that define what is allowed and not allowed to do. There are traditionnaly two kinds of Value Streams: 1) Development development Value Streams define all of the actions, both value-creating and nonvalue-creating, required to bring a Product from concept to launch. 2) Operational Value Streams define define all of the actions, both value-creating and nonvalue-creating, required from order to delivery. These include actions to process information from the Customer and actions to transform the product on its way to the Customer. |
| Concept | Description |
|---|---|
Business Agent |
A Business Agent is a Resource Agent which produces and reacts to Business Outcome Events of the enterprise. A Business Agent can be a Human Resource (Organizational Position or Department Type), a Business System (Business Software System or Concrete Hardware System) or a Capability Configuration (an assembly of Org-Units and Business Systems. |
Business Agent Environment |
A Business Agent Environment is an operating context which defines the interactions (Business Service Channel) of a Business Agent with its partners (Partner Resource Agent). |
Business Asset |
Business Assets are Resource Functional Assets that define how Business Outcome Events are specified, produced and consumed. |
Business Behavior |
A Business Behavior is a Business Operating Asset that describes any action or reaction of a Business Agent to external or internal circumstances. This includes Business Resource Processes (actions), Business Resource Interaction Processs (stories) or service interactions (Business Service Interface). |
Business Environment Scenario |
A Business Environment Scenario is a story that describes how a Business Agent interacts with its partners (Partner Resource Agents) to achieve Business Outcome Events in a specific Eco-System (Business Agent Environment). This includes: 1) A course of events represented by Resource Object Flows depicting the story towards the delivery of expected Business Outcome Events. 2) Interacting Business Agents who participate to the story in the considered Eco-System. |
Business Operating Asset |
Business Operating Assets comprise physical assets which contribute to the production and consumption of Business Outcome Events of the enterprise. This includes Business Agents, their behaviors (Business Behavior: Business Resource Process, Business Resource Interaction Process), |
Business Resource Capability |
A Business Resource Capability is a Resource Capability provided by Business Agents, that benefits to Customers (internal or external) of the enterprise. It expresses an ability to produce Business Outcome Events. This includes Functionality, Physical Capability and Skill. |
Business Resource Ecosystem |
A Business Resource Ecosystem is an Operating Eco-System that describes the operating context in which a Business Agent exists or lives for a specific purpose. |
Business Resource Interaction Process |
A Business Resource Interaction Process is a story involving the components of a Business Agent interacting in order to produce Business Outcome Events. This includes: 1) A course of events represented by Resource Flows depicting the steps towards the delivery of expected Business Outcome Events. 2) Component Business Agents that participate to the story. |
Business Resource Process |
A Business Resource Process is a Resource Process which is conducted by Business Agents (physical resources such as Org-Unit, System of Resources ,Business Systems) and which describes how these entities act to produce and consume Business Outcome Events. Business Resource Processes include Business Processes and System Processes,
|
Business Resource Rule |
A Business Resource Rule is a Resource Rule that is enforced by Business Operating Assets of the Enterprise.
|
Conceptual Agent |
A Conceptual Agent is an abstract type of Agent that depicts a functional division of labor within an enterprise, influencing the formation of its business operating model. The concrete specializations of Conceptual Agent follow the systemic level pattern and come in the form of Operating Domain (a Macro Conceptual Agent) and Business Function (a Mezzo Conceptual Agent). |
Conceptual Operating Asset |
A Conceptual Operating Asset is an Operating Asset used to describe the Conceptual Operating Model of the enterprise. It includes Value Streams, Operating Domains and Business Functions and the way they contribute to the delivery of Business Outcome Events.
|
Data Asset |
A Data Asset represents the abstract structure of any kind of data that can be processed and memorized by a Business Software System. A Data Asset is either a Data Entity or a Data Property. Only Data Entitys can have identity and states. Data Propertys only handle raw data. Data Assets are managed in Data Catalogs. |
Data Domain |
A Data Domain is subset of the enterprise’s data that are meant to be manipulated together in the context of business operations. For instance, a "Sales" Data Domain contains at least the following entities: Customers, Orders, Products. Each Data Entity in a Data Domain has CRUD characteristics. For instance, Products are read-only in a "Sales" Data Domain, while Customers and Orders have all CRUD characteristics. Data Domains define functional data boundaries used both for Data Allocation to Business Systems (see Data Stores) and Data Governance for data stewardship (Data Catalogs). |
Individual Business Agent |
An Individual Business Agent is an Individual Resource Agent which produces Business Outcome Events of the enterprise. |
Individual Business Asset |
|
Operational Risk Type |
An Operational Risk Type is a kind of Risk Type that refers to the potential for loss due to the enterprise's inadequate functioning. An Operational Risk Type is either Compliance Risk Type a or an Operating Risk Type. |
Resource Functional Asset |
Resource Functional Assets are Functional Assets that define how Business Outcome Events are specified, produced and consumed. |
